Grid 30 Slot 8
All profiles are anodized and coordinated with each other in the series-specific grid dimensions, making them compatible. Within the series, the uniform grid dimension allows any combination of the automation profiles with one another. There is no industry in which ALU TP automation profiles cannot be used!
The aluminum alloy EN AW 6063 used is weather-resistant and resistant to many chemicals.
B8 3030
| PU | 20 pcs. |
| Length | 3060 mm |
| Mass | 0.85 kg/m |
B8 30303N
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 0.90 kg/m |
B8 30302NE
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 0.95 kg/m |
B8 30302NP
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 0.95 kg/m |
B8 30301N
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 1.00 kg/m |

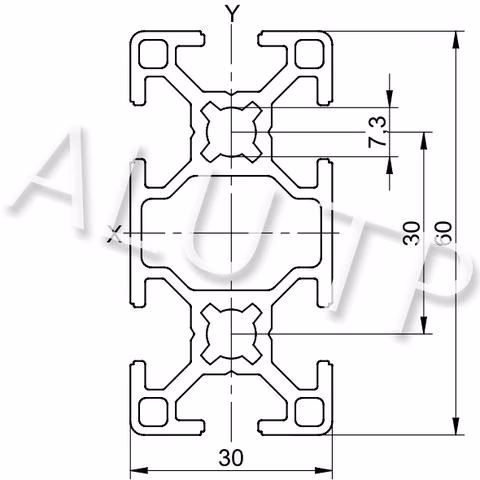

B8 3060
| PU | 10 pcs. |
| Length | 6060 mm |
| Mass | 1.49 kg/m |

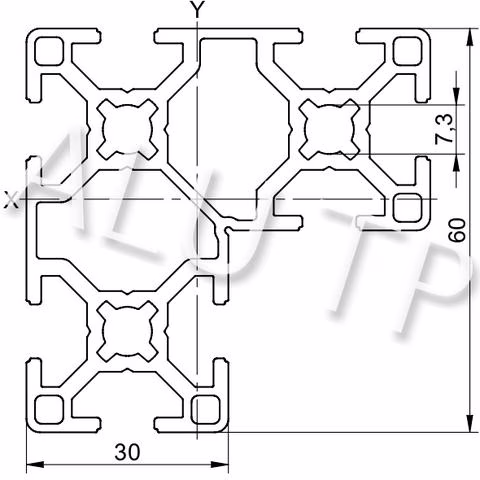

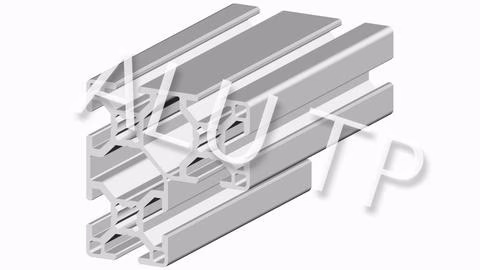

B8 306060
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 2.22 kg/m |

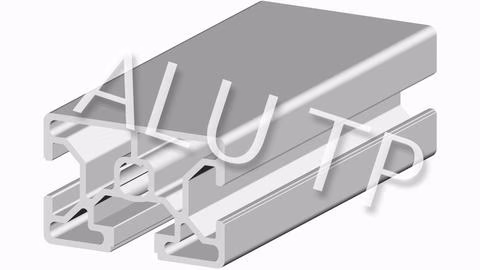

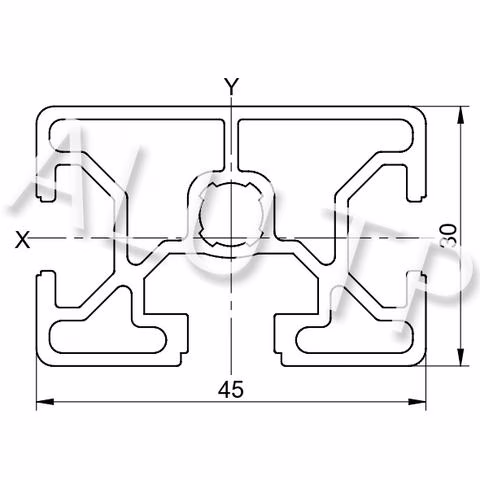

B8 30453N
| PU | 18 pcs. |
| Length | 6060 mm |
| Mass | 1.09 kg/m |

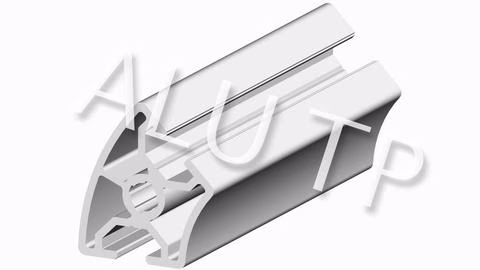

B8 30R45
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 1.11 kg/m |

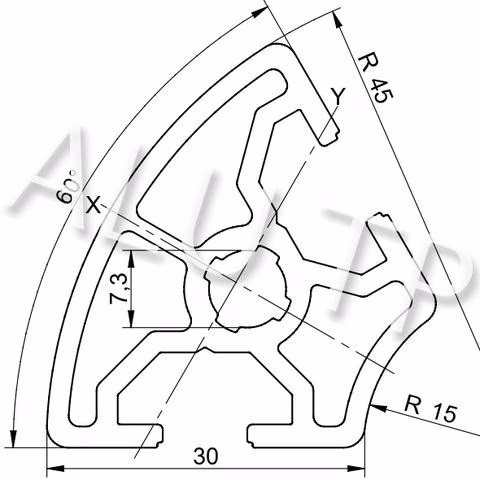

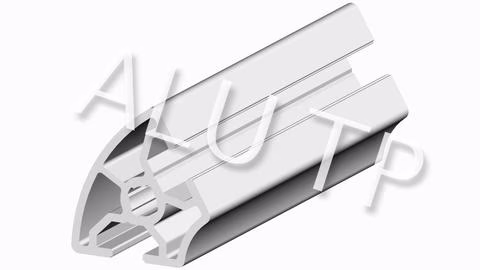

B8 30R60
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 1.01 kg/m |

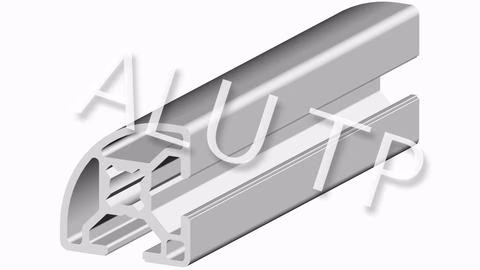

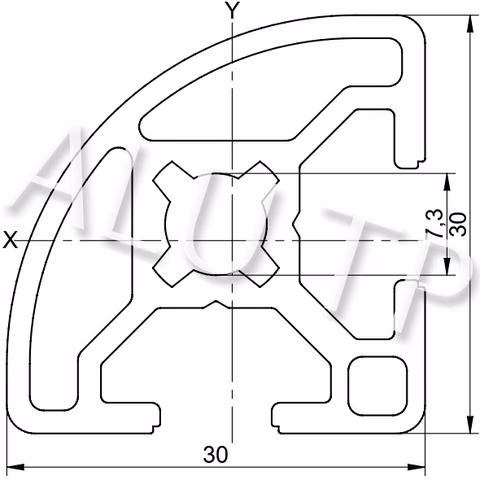

B8 30R90
| PU | 20 pcs. |
| Length | 6060 mm |
| Mass | 0.78 kg/m |

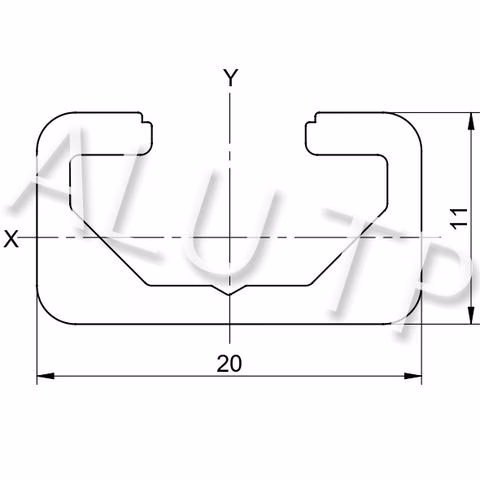

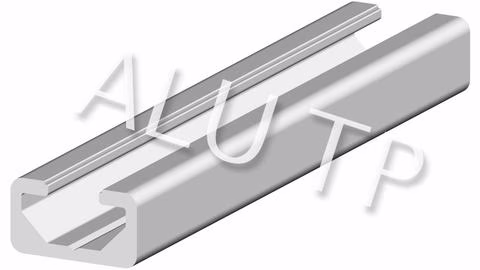

B8 1120
| PU | 10 pcs. |
| Length | 2060 mm |
| Mass | 0.28 kg/m |

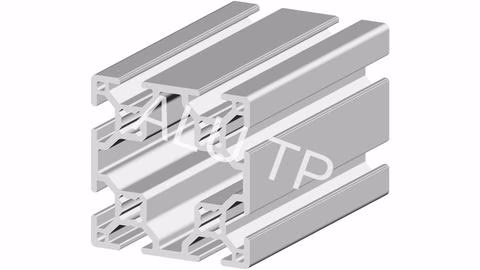

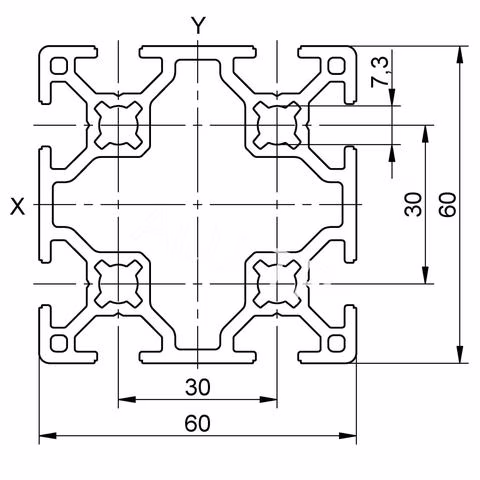

B8 6060
| PU | 10 pcs. |
| Length | 6060 mm |
| Mass | 2.64 kg/m |

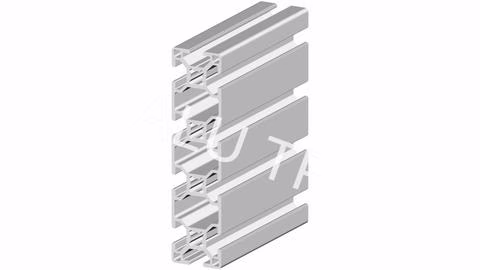

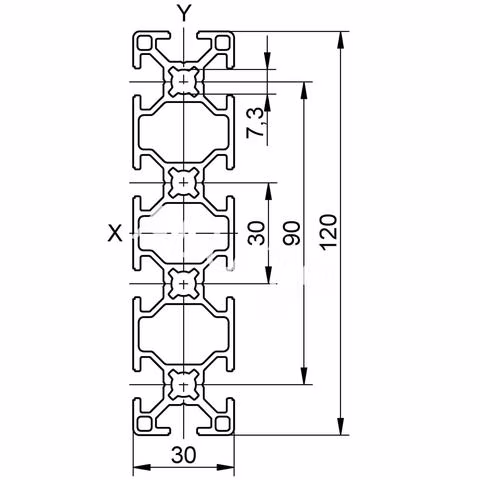

B8 30120
| PU | 10 pcs. |
| Length | 6060 mm |
| Mass | 2.68 kg/m |

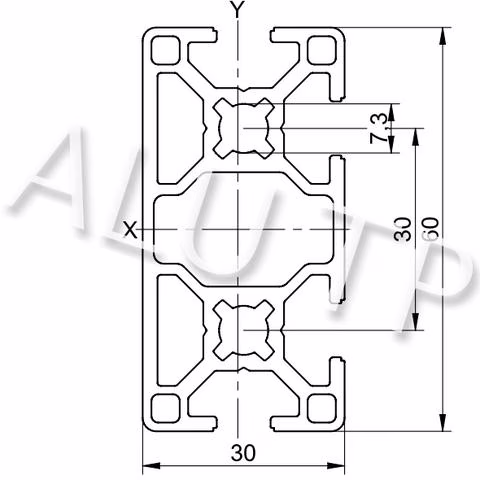

B8 30604N
| PU | 10 pcs. |
| Length | 6060 mm |
| Mass | 1.58 kg/m |
