Grid 45 Slot 10

All profiles are anodized and coordinated with each other in the series-specific grid dimensions, making them compatible. Within the series, the uniform grid dimension allows any combination of the automation profiles with one another. There is no industry in which ALU TP automation profiles cannot be used!

The aluminum alloy EN AW 6063 used is weather-resistant and resistant to many chemicals.

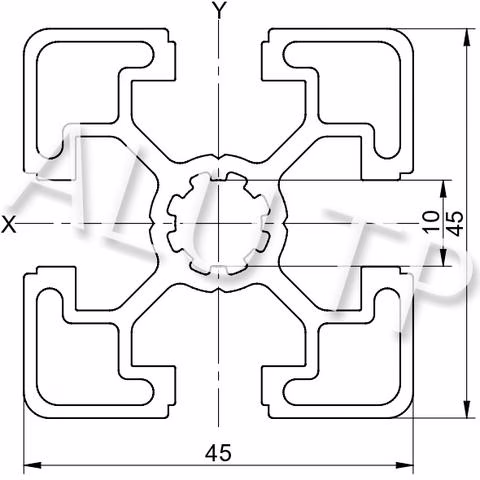

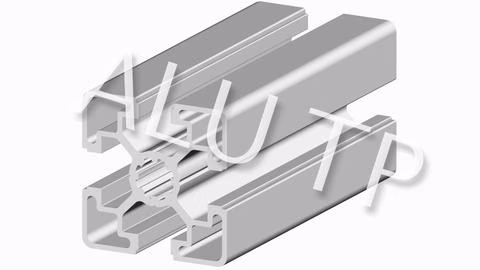

B10 4545L

PU	20 pcs.
PU	112 pcs.
Length	6060 mm
Mass	1.55 kg/m
Alternative name	45x45L

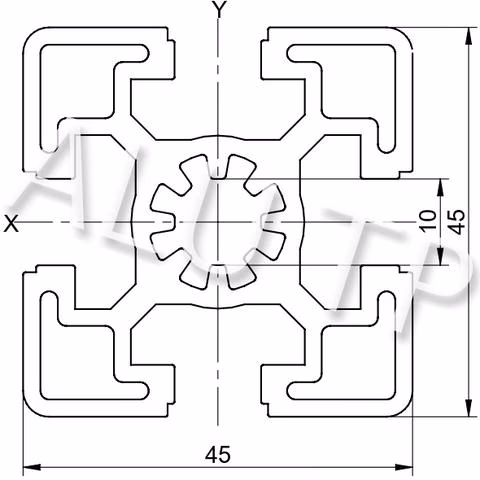

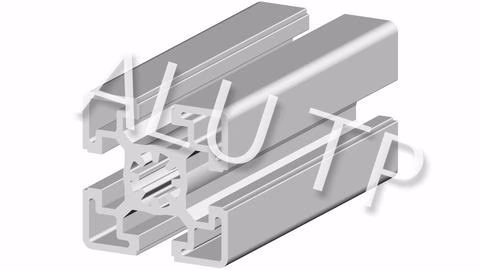

B10 4545

PU	20 pcs.
Length	6060 mm
Mass	2.03 kg/m
Alternative name	45x45

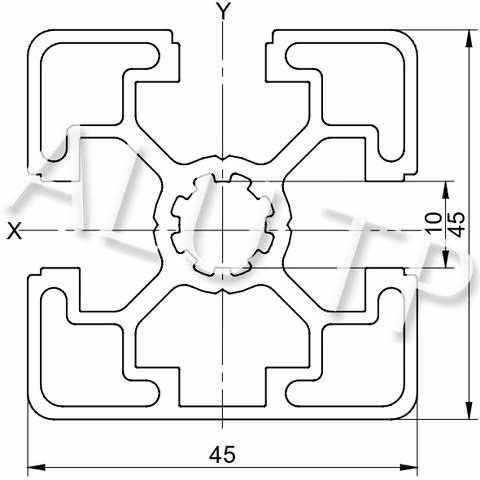

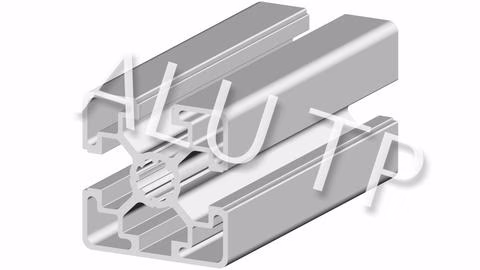

B10 4545L3N

PU	20 pcs.
Length	6060 mm
Mass	1.57 kg/m
Alternative name	45x45L 3N

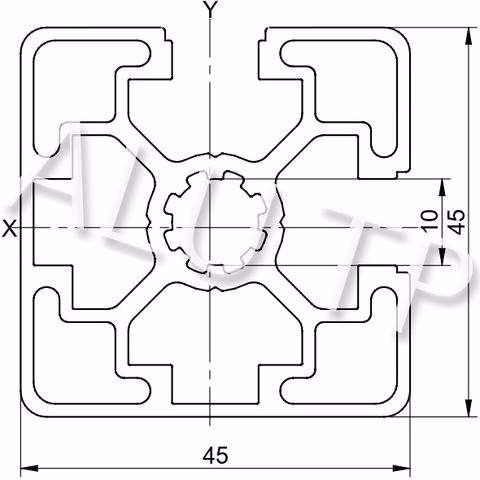

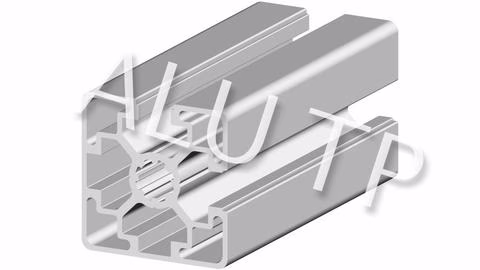

B10 4545L2NE

PU	20 pcs.
Length	6060 mm
Mass	1.64 kg/m
Alternative name	45x45L 2NVS

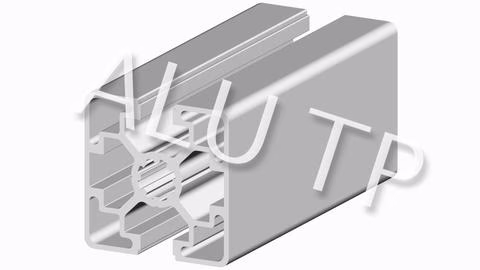

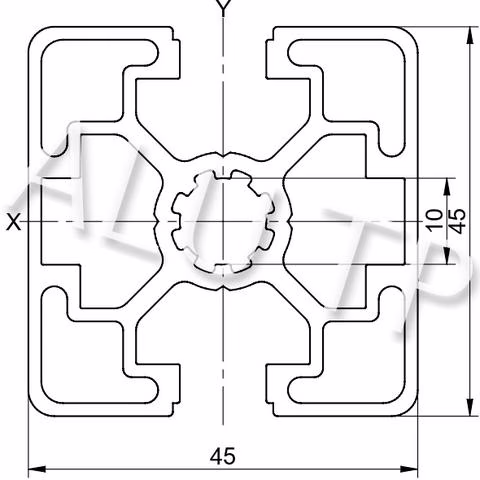

B10 4545L2NP

PU	20 pcs.
Length	6060 mm
Mass	1.64 kg/m
Alternative name	45x45L 2N

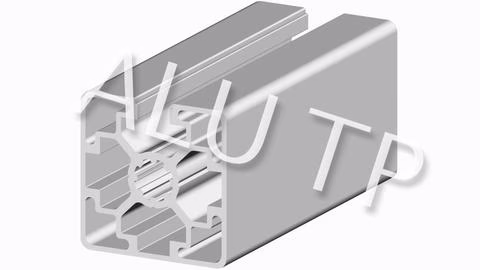

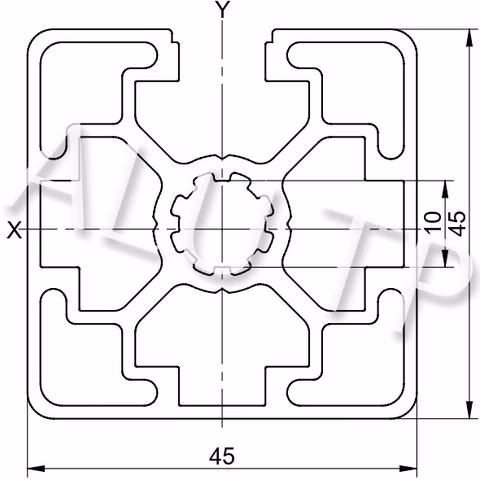

B10 4545L1N

PU	20 pcs.
Length	6060 mm
Mass	1.69 kg/m
Alternative name	45x45L 1N

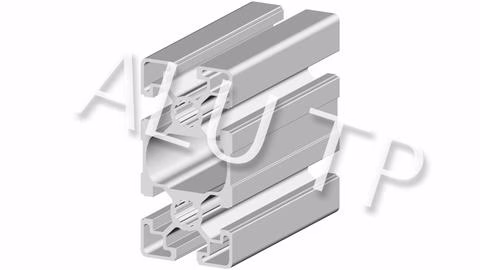

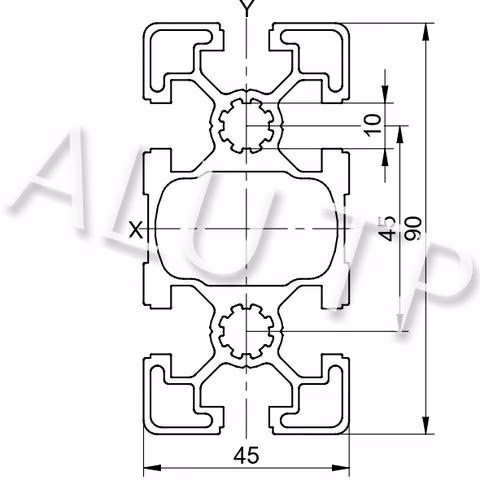

B10 4590L

PU	12 pcs.
PU	56 pcs.
Length	6060 mm
Mass	3.05 kg/m
Alternative name	45x90L

B10 4590

PU	12 pcs.
Length	6060 mm
Mass	4.11 kg/m
Alternative name	45x90

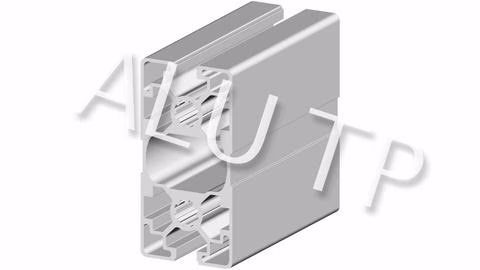

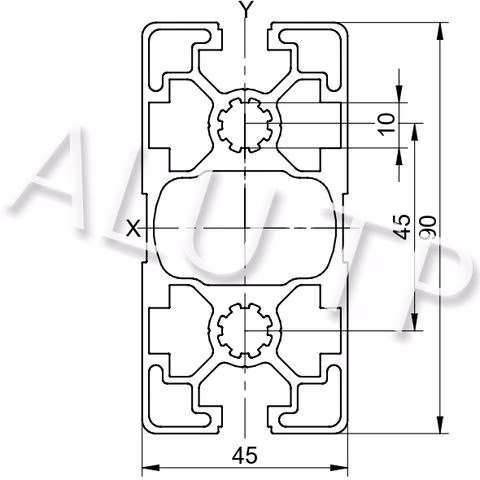

B10 4590L2NP

PU	12 pcs.
Length	6060 mm
Mass	3.25 kg/m
Alternative name	45x90L 2N

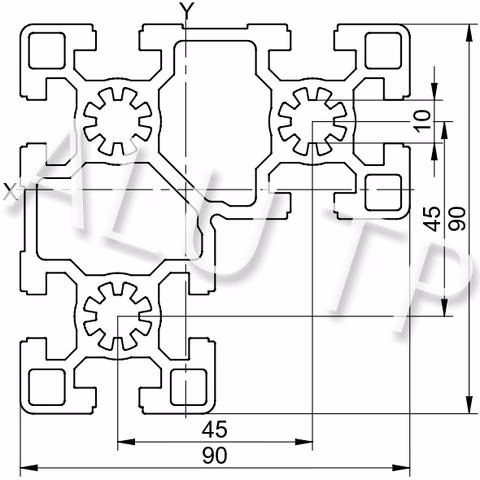

B10 459090L

PU	8 pcs.
Length	6060 mm
Mass	5.67 kg/m
Alternative name	45x90x90L

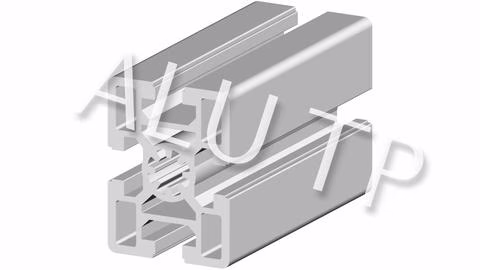

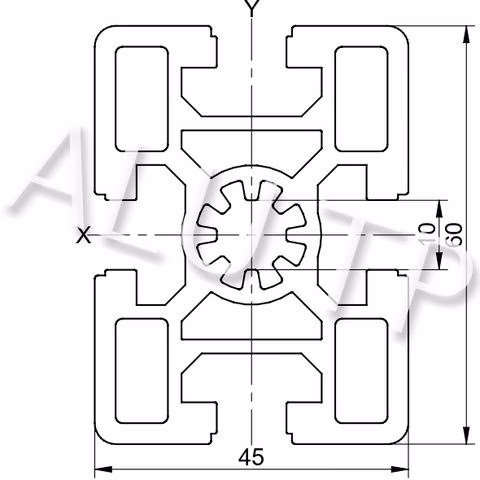

B10 4560

PU	20 pcs.
Length	6060 mm
Mass	3.01 kg/m
Alternative name	45x60

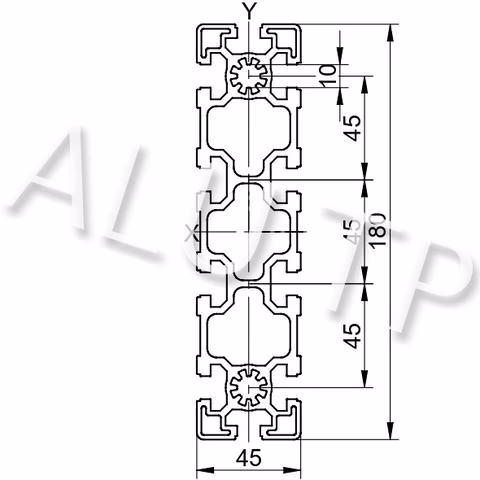

B10 45180

PU	6 pcs.
Length	6060 mm
Mass	6.96 kg/m
Alternative name	45x180

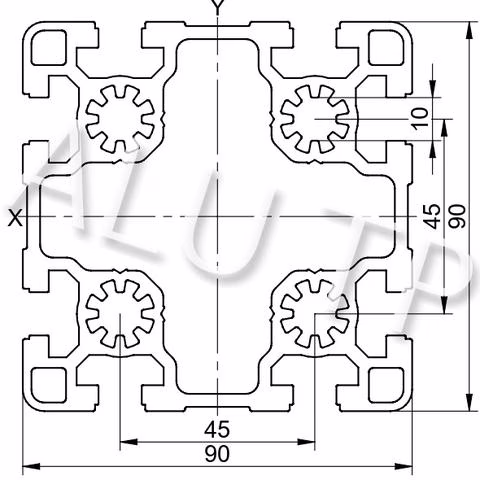

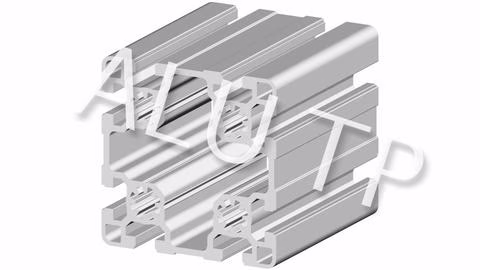

B10 9090L

PU	6 pcs.
Length	6060 mm
Mass	6.34 kg/m
Alternative name	90x90L

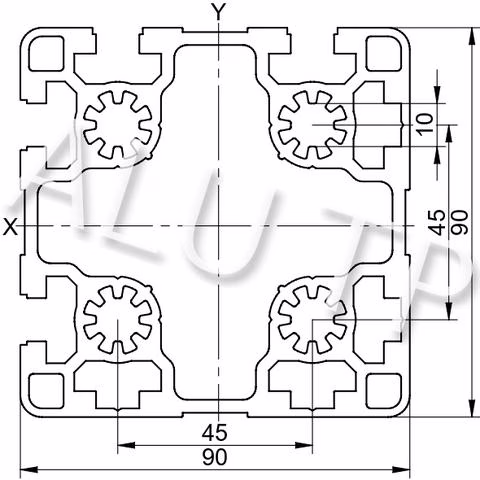

B10 9090L4NE

PU	6 pcs.
Length	6060 mm
Mass	6.50 kg/m
Alternative name	90x90L 4NVS

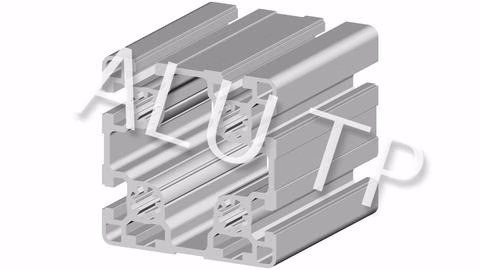

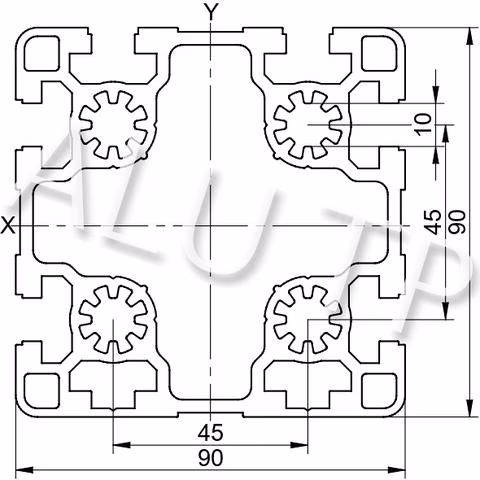

B10 9090L6N

PU	6 pcs.
Length	6060 mm
Mass	6.50 kg/m
Alternative name	90x90L 6N

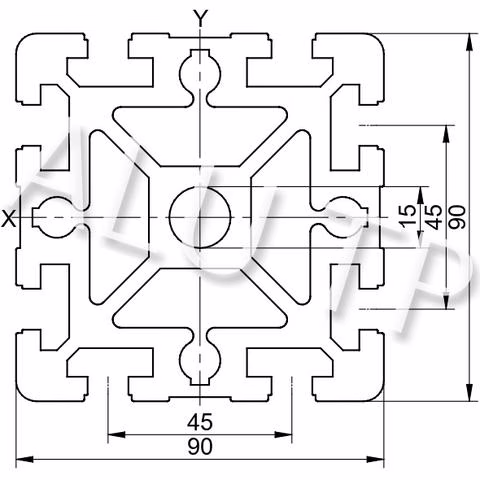

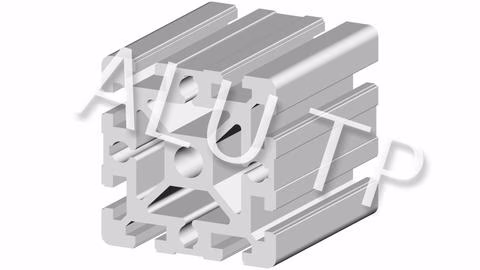

B10 9090

PU	6 pcs.
Length	6060 mm
Mass	10.51 kg/m
Alternative name	90x90

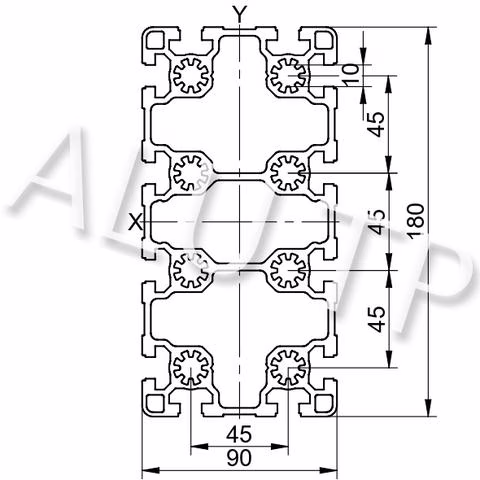

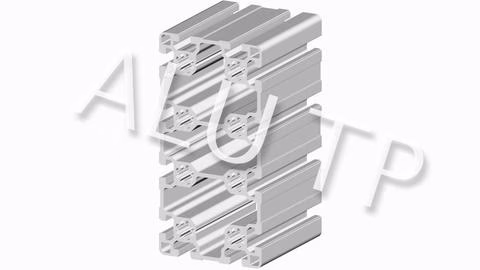

B10 90180L

PU	3 pcs.
Length	6060 mm
Mass	11.42 kg/m
Alternative name	90x180L

B10 90180

PU	3 pcs.
Length	6060 mm
Mass	17.16 kg/m
Alternative name	90x180

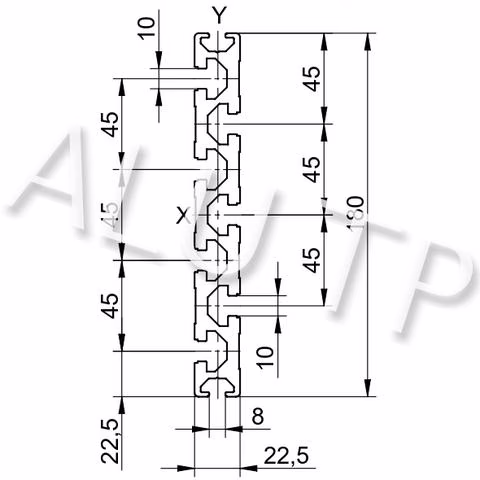

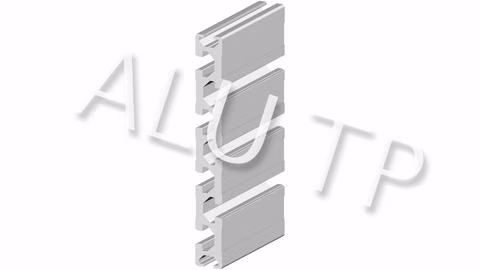

B10 22.5180

PU	6 pcs.
Length	6060 mm
Mass	5.80 kg/m
Alternative name	22,5x180

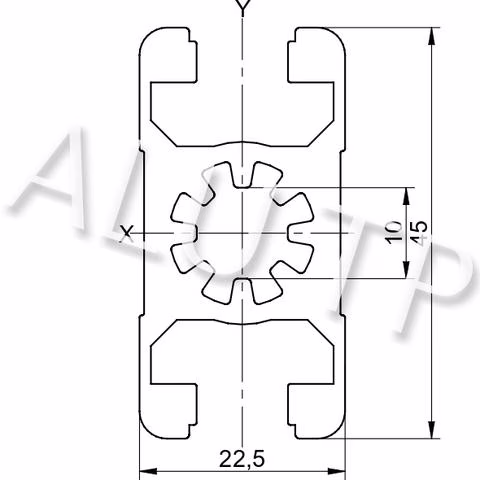

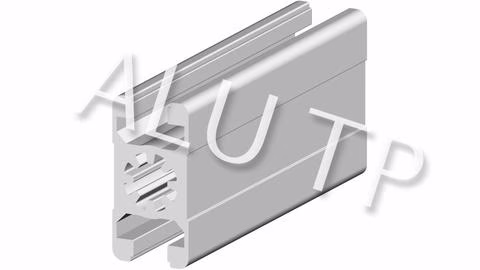

B10 22.545

PU	24 pcs.
Length	6060 mm
Mass	1.22 kg/m
Alternative name	22,5x45

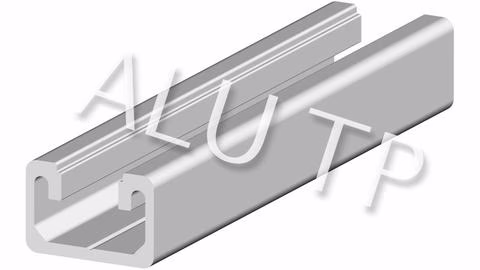

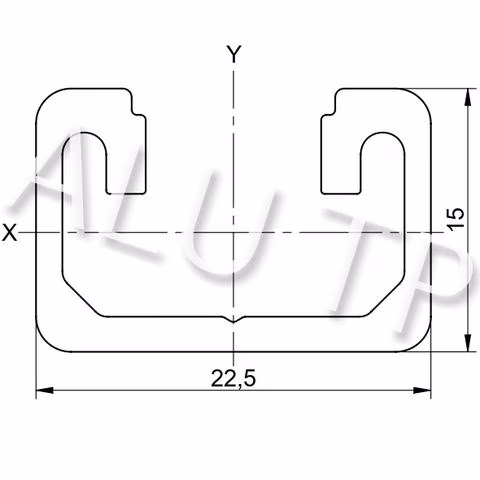

B10 1522.5

PU	10 pcs.
Length	3060 mm
Mass	0.33 kg/m
Alternative name	15x22,5

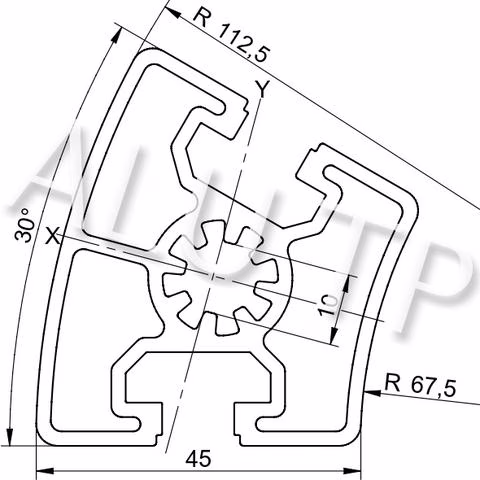

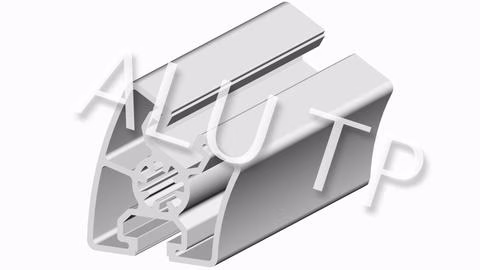

B10 45R30

PU	20 pcs.
Length	6060 mm
Mass	1.86 kg/m
Alternative name	45x30°

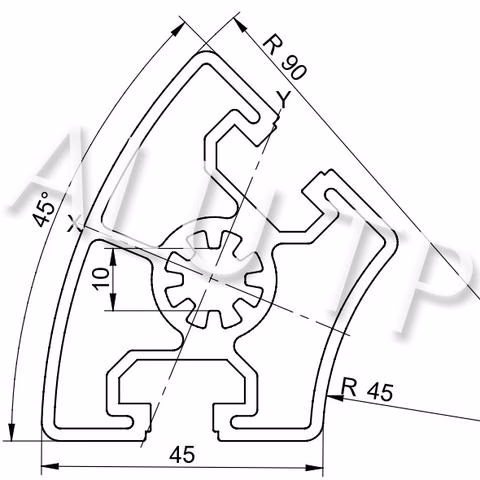

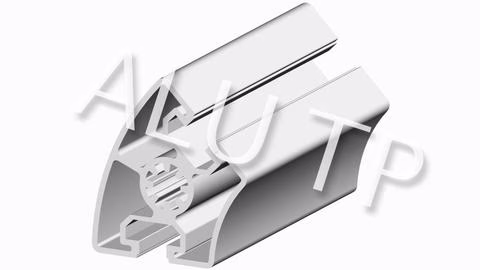

B10 45R45

PU	20 pcs.
Length	6060 mm
Mass	2.00 kg/m
Alternative name	45x45°

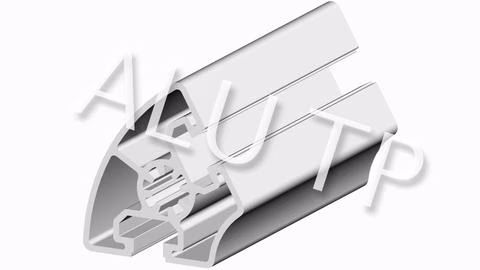

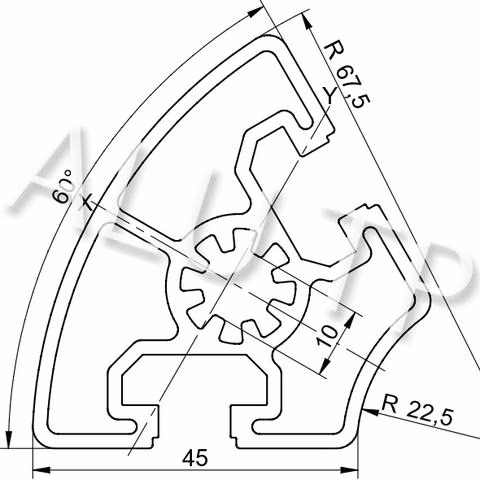

B10 45R60

PU	20 pcs.
Length	6060 mm
Mass	1.80 kg/m
Alternative name	45x60°

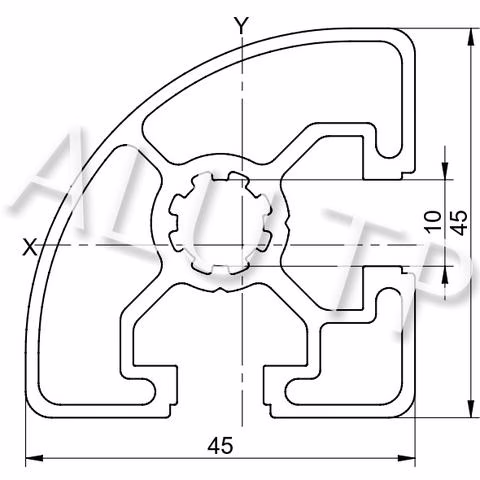

B10 45LR90

PU	20 pcs.
Length	6060 mm
Mass	1.27 kg/m
Alternative name	45x45L R
