Automation profiles

Grid 40 Slot 8

All profiles are anodized and coordinated with each other in the series-specific grid dimensions, making them compatible. Within the series, the uniform grid dimension allows any combination of the automation profiles with one another. There is no industry in which ALU TP automation profiles cannot be used!

The aluminum alloy EN AW 6063 used is weather-resistant and resistant to many chemicals.

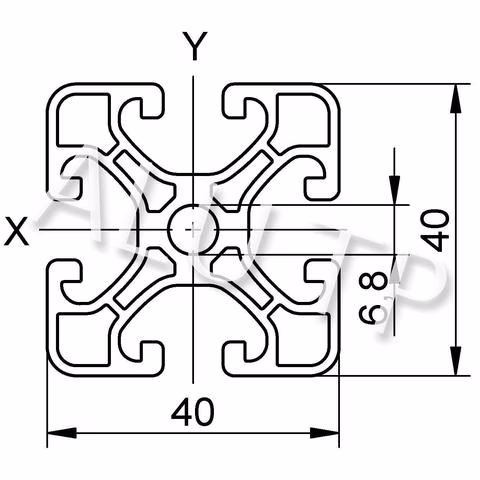

I8 4040E

PU	16 pcs.
PU	108 pcs.
Length	6060 mm
Mass	1.48 kg/m
Alternative name	Profil 8 40x40E

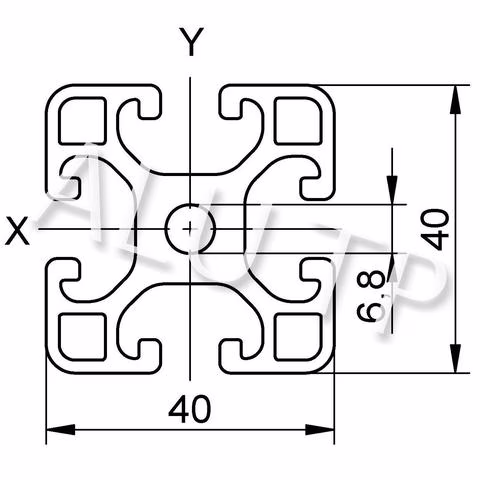

I8 4040L

PU	16 pcs.
PU	108 pcs.
Length	6060 & 3060 mm
Mass	1.75 kg/m
Alternative name	Profil 8 40x40 leicht

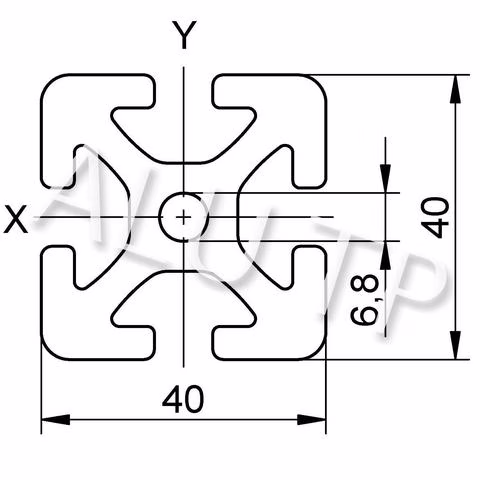

I8 4040

PU	16 pcs.
PU	72 pcs.
Length	6060 mm
Mass	2.47 kg/m
Alternative name	Profil 8 40x40

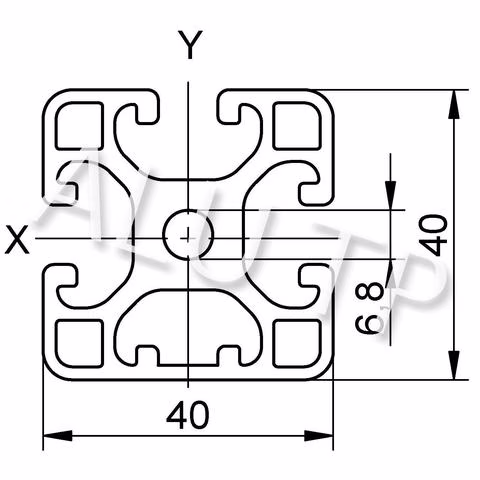

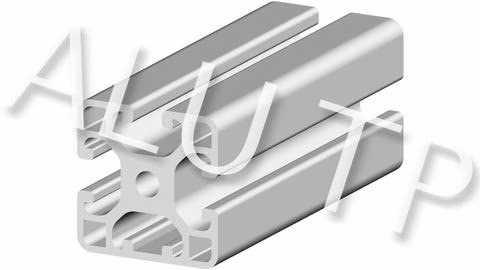

I8 4040L3N

PU	16 pcs.
Length	6060 mm
Mass	1.80 kg/m
Alternative name	Profil 8 40x40 1N leicht

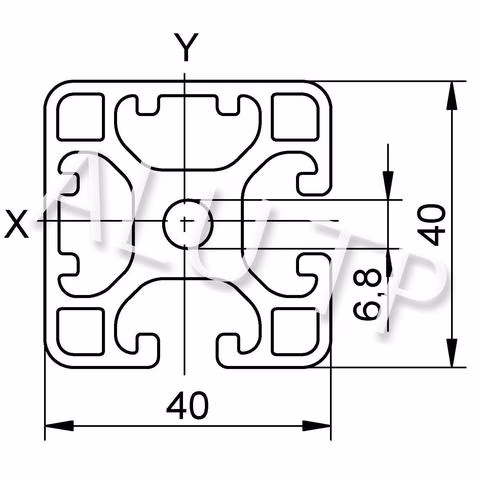

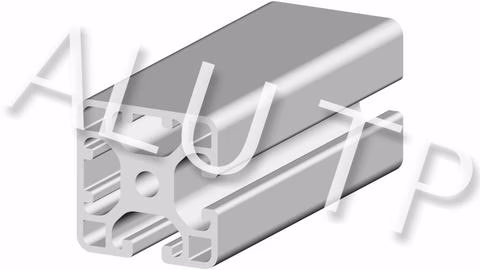

I8 4040L2NE

PU	16 pcs.
Length	6060 mm
Mass	1.84 kg/m
Alternative name	Profil 8 40x40 2N90 leicht

I8 4040E2NP

PU	16 pcs.
Length	6060 mm
Mass	1.35 kg/m
Alternative name	Profil 8 40x40 2N180 E

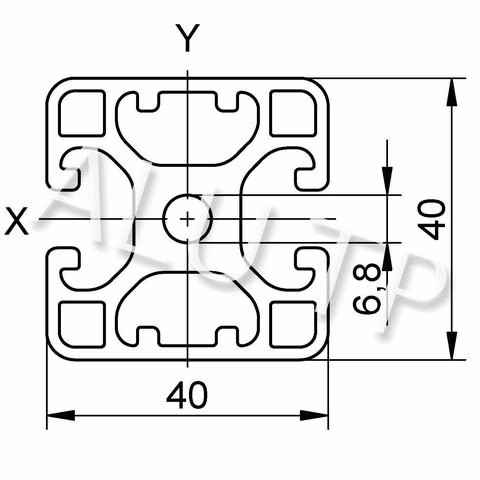

I8 4040L2NP

PU	16 pcs.
Length	6060 mm
Mass	1.84 kg/m
Alternative name	Profil 8 40x40 2N180 leicht

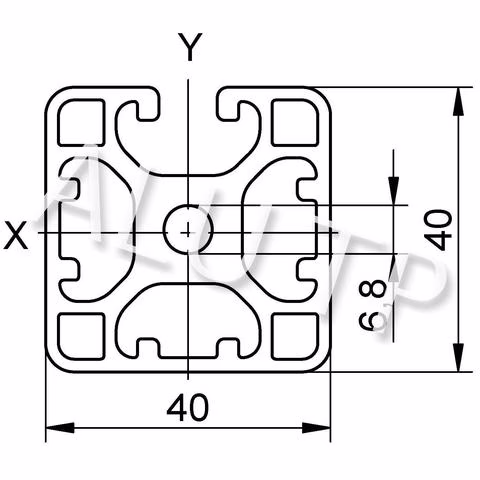

I8 4040L1N

PU	8 pcs.
Length	6060 mm
Mass	1.89 kg/m
Alternative name	Profil 8 40x40 3N leicht

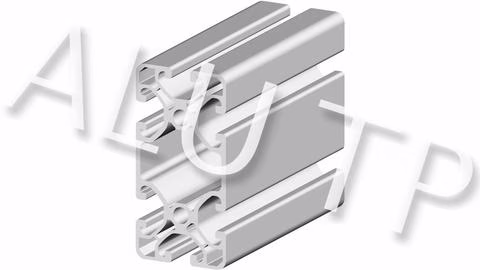

I8 4080E

PU	8 pcs.
Length	6060 mm
Mass	2.48 kg/m
Alternative name	Profil 8 80x40 E

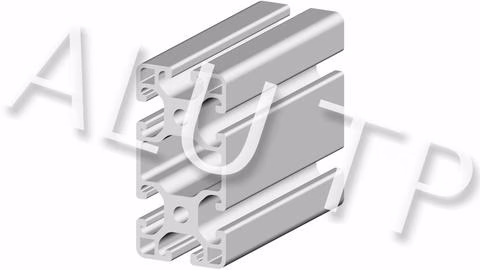

I8 4080L

PU	8 pcs.
PU	63 pcs.
Length	6060 & 3060 mm
Mass	3.05 kg/m
Alternative name	Profil 8 80x40 leicht

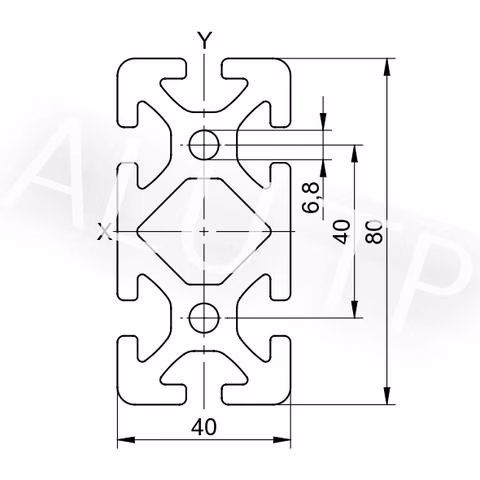

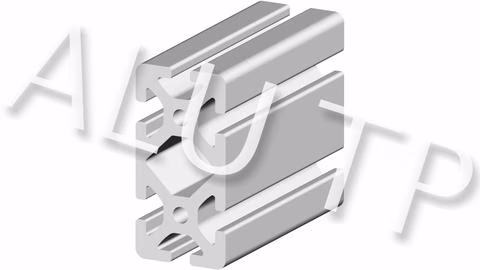

I8 4080

PU	8 pcs.
PU	36 pcs.
Length	6060 mm
Mass	4.52 kg/m
Alternative name	Profil 8 80x40

I8 4080L4N

PU	8 pcs.
Length	6060 mm
Mass	3.15 kg/m
Alternative name	Profil 8 80x40 2N leicht

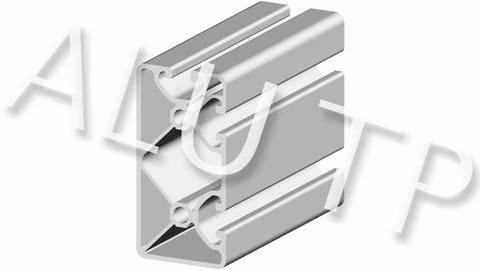

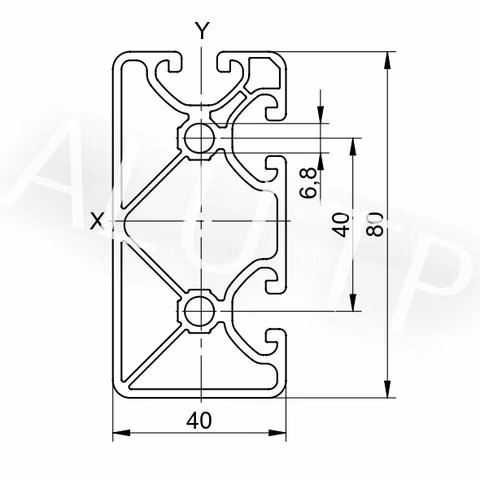

I8 4080E3NE

PU	8 pcs.
Length	6060 mm
Mass	2.29 kg/m
Alternative name	Profil 8 80x40 3N90 E

I8 4080L5N

PU	8 pcs.
Length	6060 mm
Mass	3.10 kg/m
Alternative name	Profil 8 80x40 1N leicht

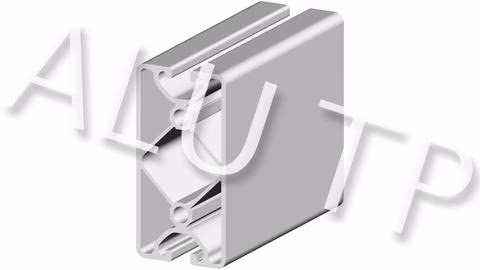

I8 4080E2NP

PU	8 pcs.
Length	6060 mm
Mass	2.23 kg/m
Alternative name	Profil 8 80x40 4N180 E

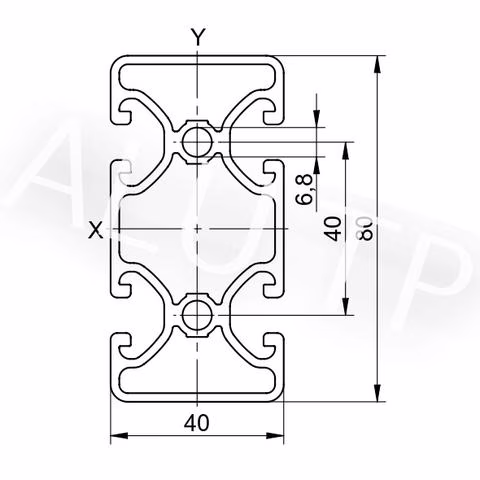

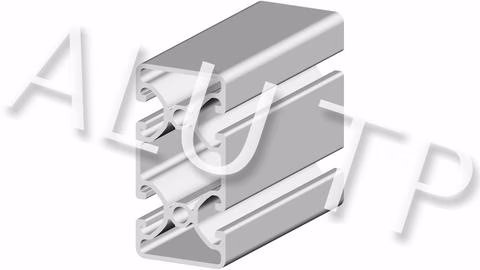

I8 4080E4NP

PU	8 pcs.
Length	6060 mm
Mass	2.33 kg/m
Alternative name	Profil 8 80x40 2N180 E

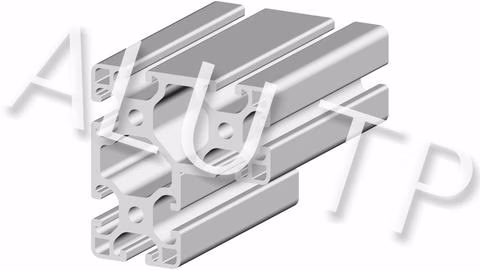

I8 408080L

PU	4 pcs.
Length	6060 mm
Mass	4.80 kg/m
Alternative name	Profil 8 W80x80x40 leicht

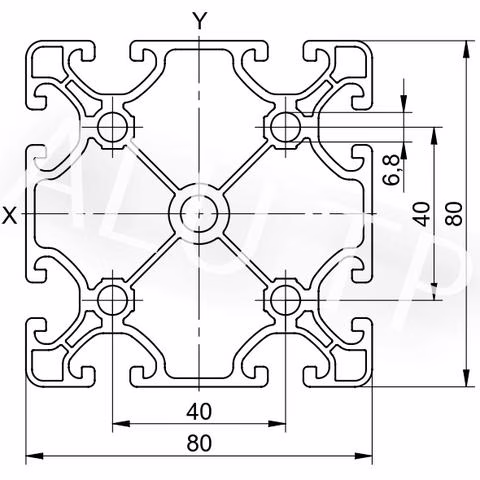

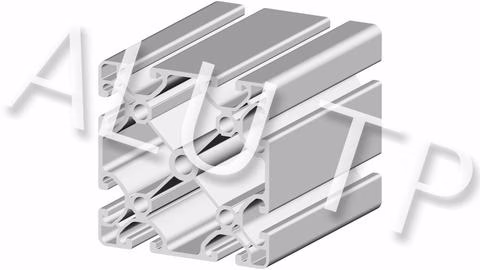

I8 8080E

PU	4 pcs.
Length	6060 mm
Mass	4.08 kg/m
Alternative name	Profil 8 80x80 E

I8 8080L

PU	4 pcs.
PU	36 pcs.
Length	6060 mm
Mass	5.33 kg/m
Alternative name	Profil 8 80x80 leicht

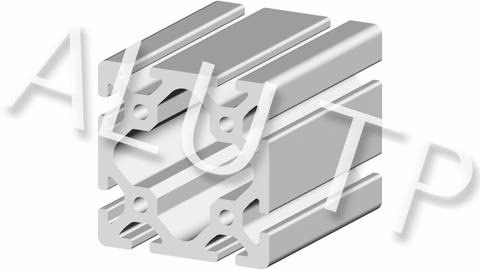

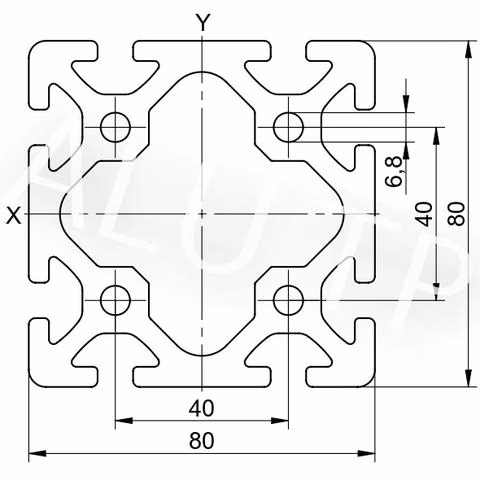

I8 8080

PU	4 pcs.
PU	24 pcs.
Length	6060 mm
Mass	7.17 kg/m
Alternative name	Profil 8 80x80

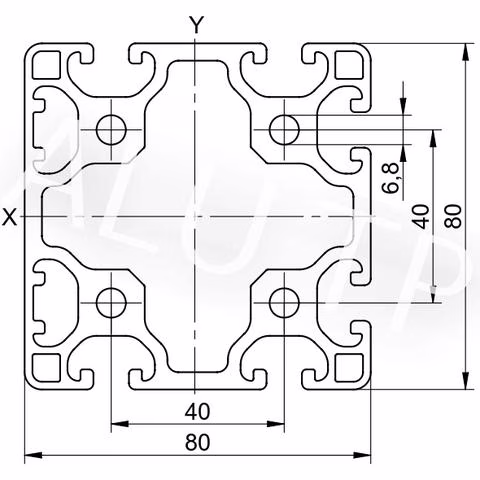

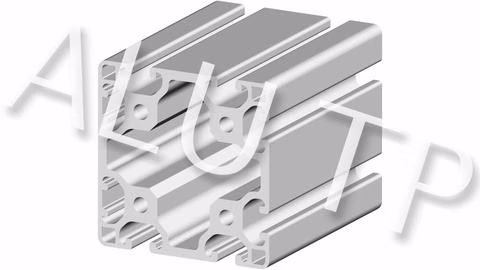

I8 8080L6N

PU	4 pcs.
Length	6060 mm
Mass	5.43 kg/m
Alternative name	Profil 8 80x80 2N leicht

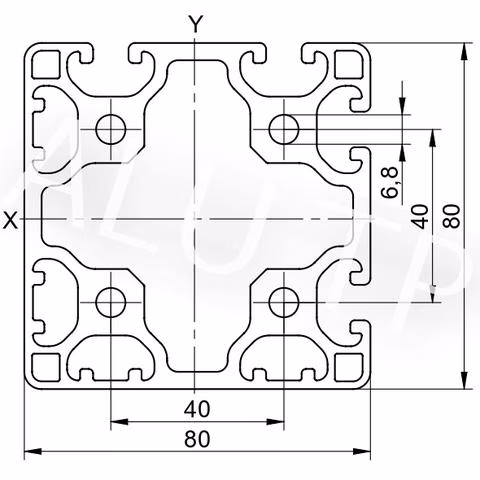

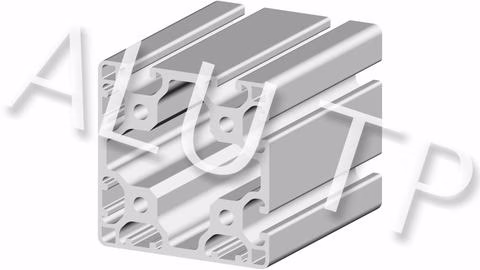

I8 8080L4NE

PU	4 pcs.
Length	6060 mm
Mass	5.52 kg/m
Alternative name	Profil 8 80x80 4N90 leicht

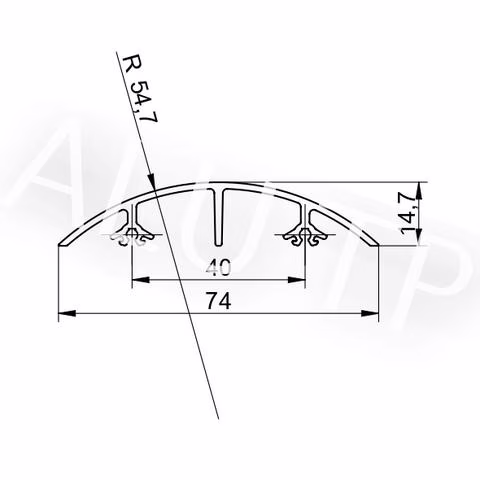

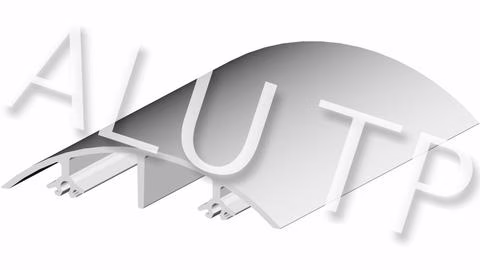

I8 80AP

PU	10 pcs.
Length	4150 mm
Mass	0.55 kg/m
Alternative name	Profil 8 Abdeckprofil 8 R80 Al

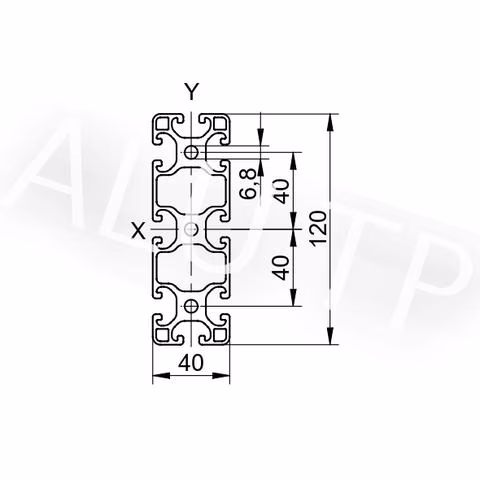

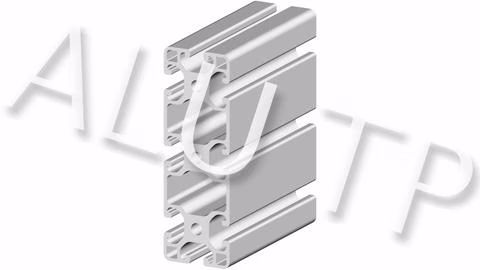

I8 40120L

PU	5 pcs.
Length	6060 mm
Mass	4.36 kg/m
Alternative name	Profil 8 120x40 leicht

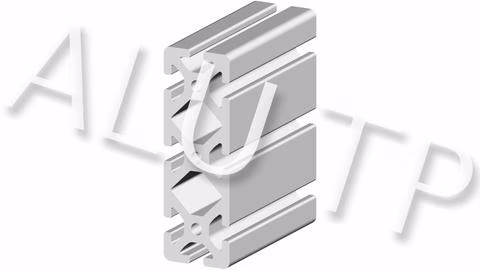

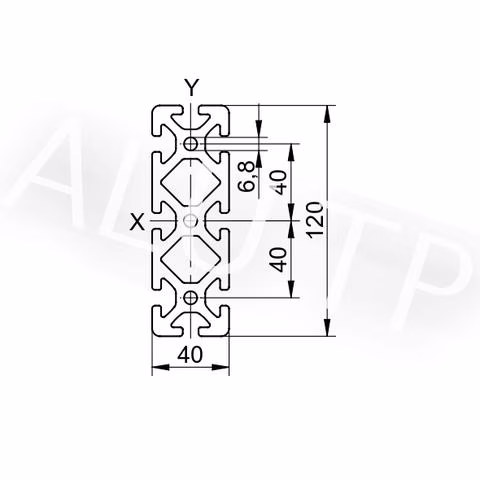

I8 40120

PU	4 pcs.
Length	6060 mm
Mass	6.57 kg/m
Alternative name	Profil 8 120x40

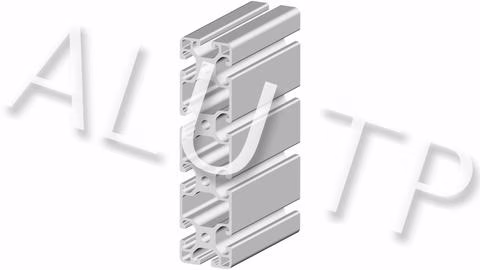

I8 40160L

PU	4 pcs.
Length	6060 mm
Mass	5.66 kg/m
Alternative name	Profil 8 160x40 leicht

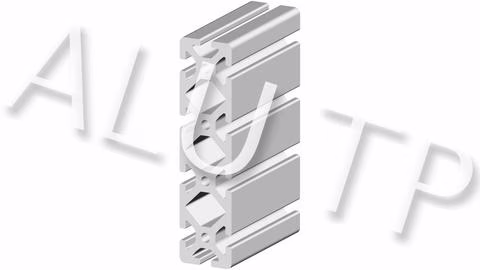

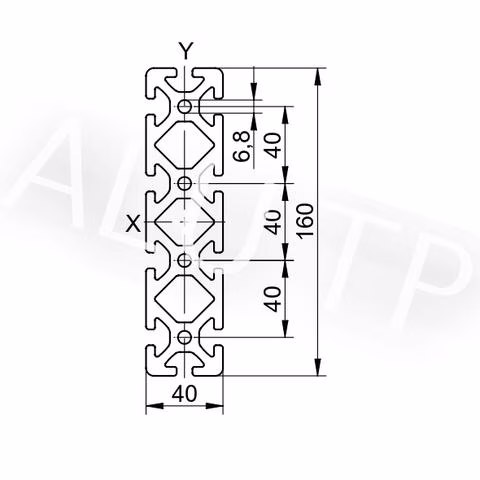

I8 40160

PU	4 pcs.
Length	6060 mm
Mass	8.62 kg/m
Alternative name	Profil 8 160x40

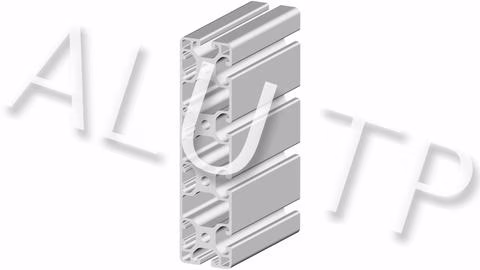

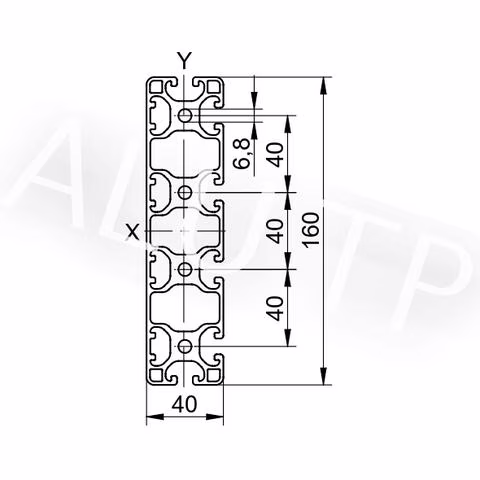

I8 40160L6N

PU	2 pcs.
Length	6060 mm
Mass	5.85 kg/m
Alternative name	Profil 8 160x40 4N leicht

I8 40200

PU	2 pcs.
Length	6060 mm
Mass	10.66 kg/m
Alternative name	Profil 8 200x40

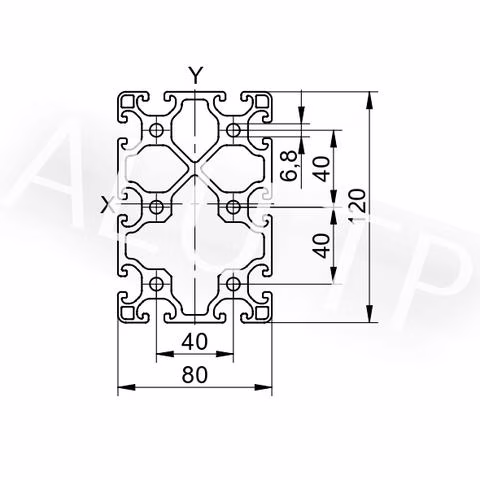

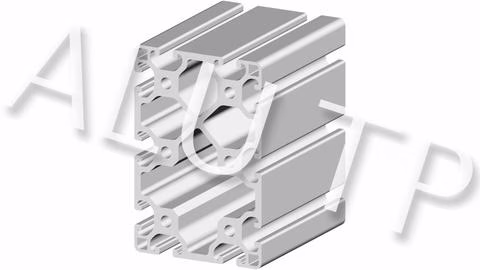

I8 80120L

PU	2 pcs.
Length	6060 mm
Mass	8.12 kg/m
Alternative name	Profil 8 120x80 leicht

I8 80120

PU	2 pcs.
Length	6060 mm
Mass	10.76 kg/m
Alternative name	Profil 8 120x80

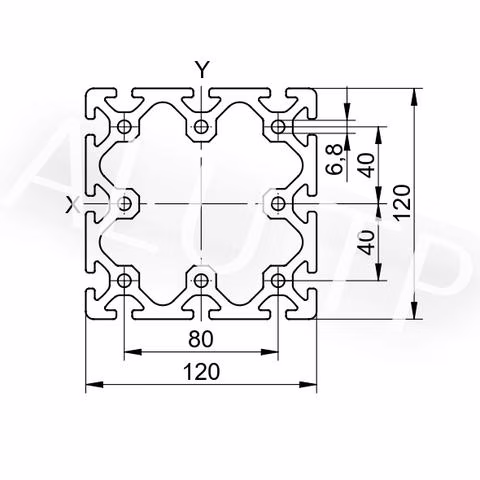

I8 120120

PU	1 pcs.
Length	6060 mm
Mass	12.34 kg/m
Alternative name	Profil 8 120x120

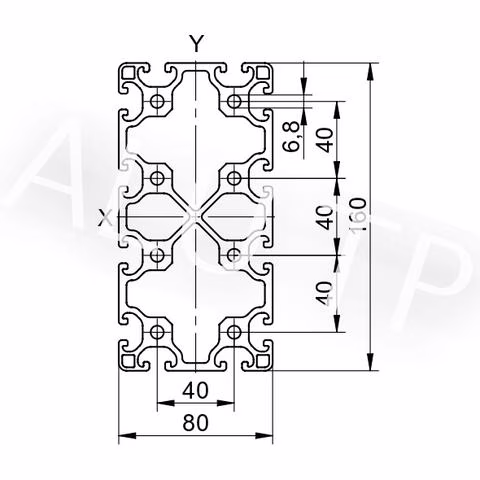

I8 80160L

PU	2 pcs.
Length	6060 mm
Mass	10.05 kg/m
Alternative name	Profil 8 160x80 leicht

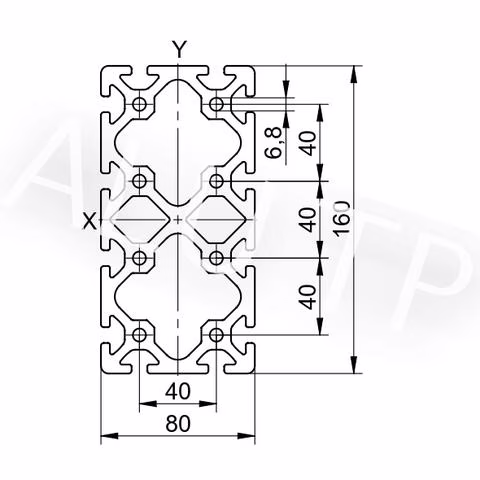

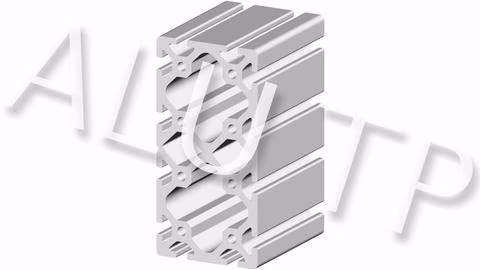

I8 80160

PU	2 pcs.
Length	6060 mm
Mass	13.46 kg/m
Alternative name	Profil 8 160x80

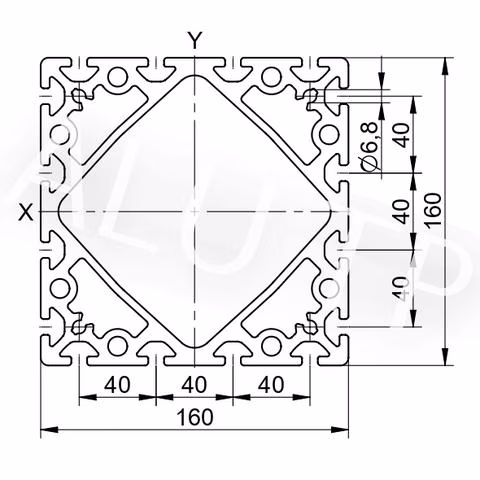

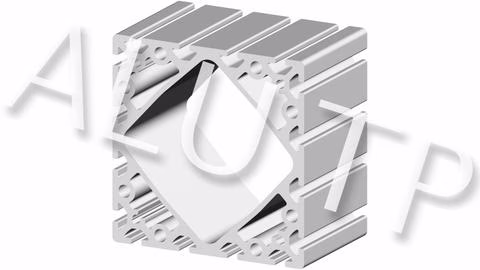

I8 160160

PU	1 pcs.
Length	6060 mm
Mass	19.91 kg/m
Alternative name	Profil 8 160x160

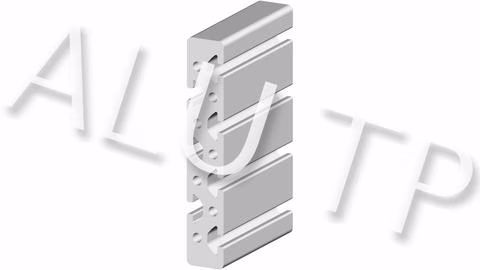

I8 28160

PU	5 pcs.
Length	6060 mm
Mass	8.37 kg/m
Alternative name	Profil 8 160x28

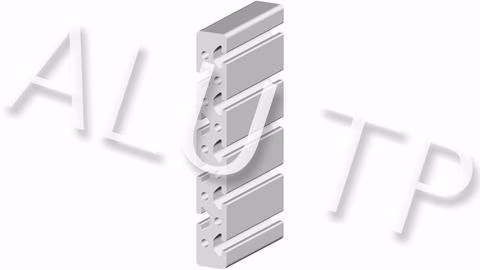

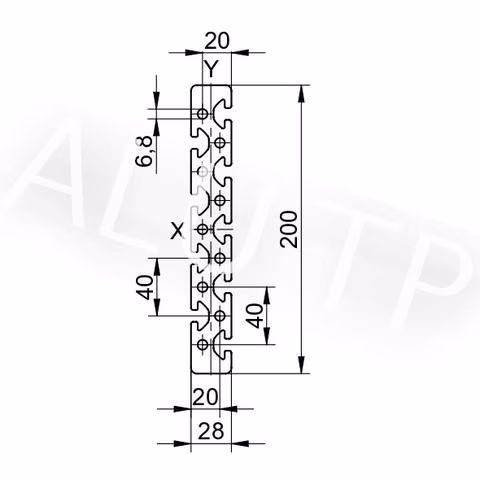

I8 28200

PU	2 pcs.
Length	6060 mm
Mass	10.33 kg/m
Alternative name	Profil 8 200x28

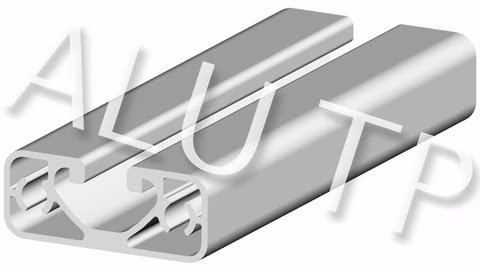

I8 1640E

PU	10 pcs.
Length	3060 & 6060 mm
Mass	0.62 kg/m
Alternative name	Profil 8 40x16 E

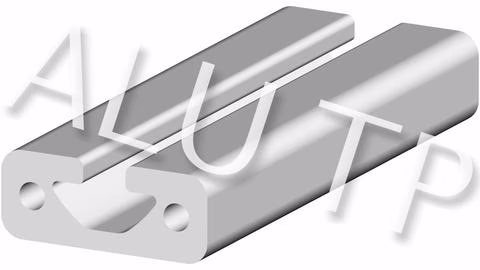

I8 1640

PU	10 pcs.
Length	3060 & 6060 mm
Mass	1.16 kg/m
Alternative name	Profil 8 40x16

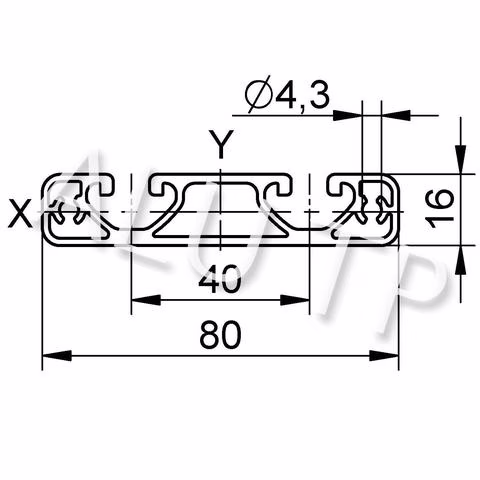

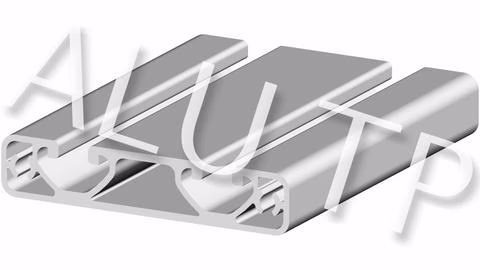

I8 1680E

PU	10 pcs.
Length	3060 mm
Mass	1.31 kg/m
Alternative name	Profil 8 80x16 E

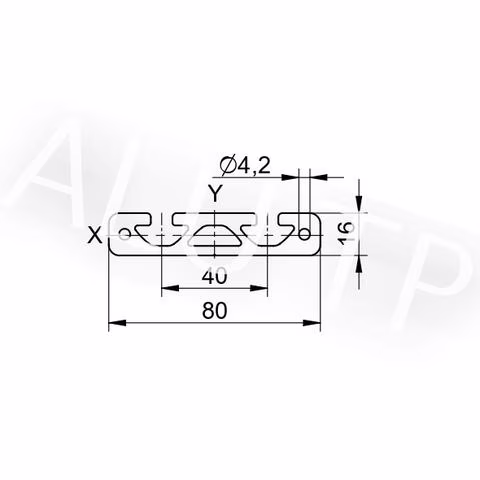

I8 1680

PU	10 pcs.
Length	3060 mm
Mass	2.16 kg/m
Alternative name	Profil 8 80x16

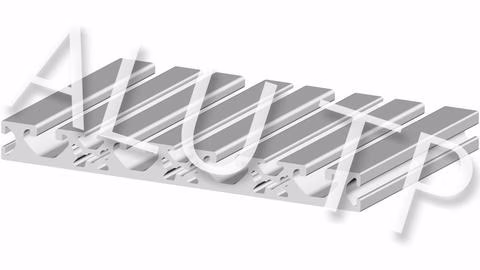

I8 16160

PU	5 pcs.
Length	6060 mm
Mass	3.70 kg/m
Alternative name	Profil 8 160x16

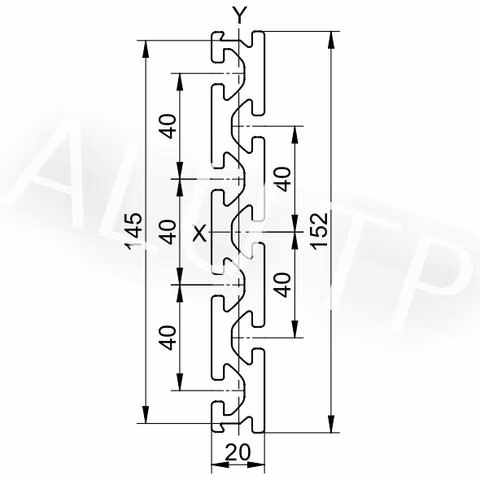

I8 20152

PU	4 pcs.
Length	6060 mm
Mass	4.93 kg/m
Alternative name	Profil 8 Plattenprofil 8

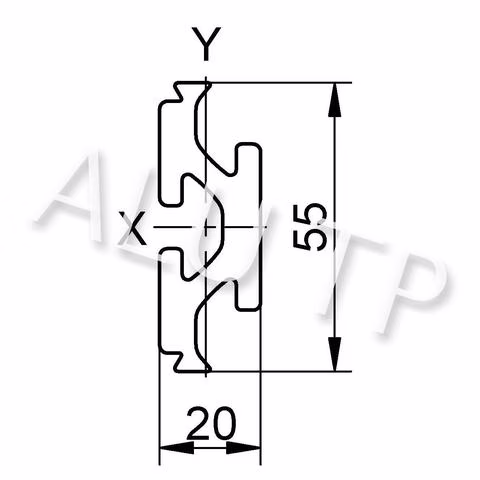

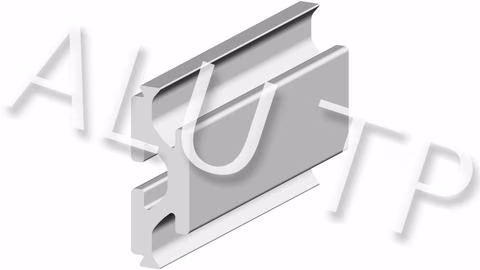

I8 2055

PU	4 pcs.
Length	6060 mm
Mass	1.48 kg/m
Alternative name	Profil 8 Plattenverbindungsprofil 8

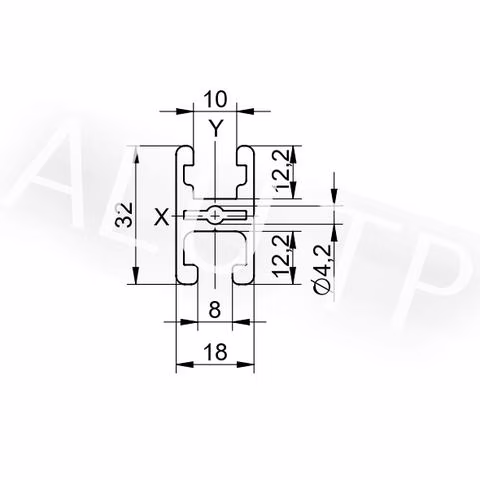

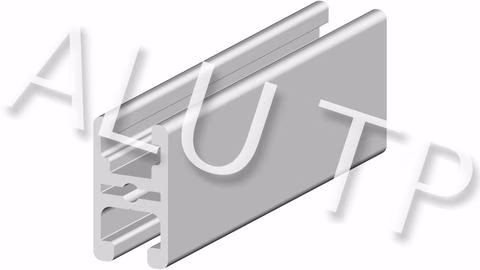

I8 3218

PU	10 pcs.
Length	6060 mm
Mass	0.67 kg/m
Alternative name	Profil 8 32x18

I8 4032L

PU	10 pcs.
Length	6060 mm
Mass	1.32 kg/m
Alternative name	Profil 8 40x32 leicht

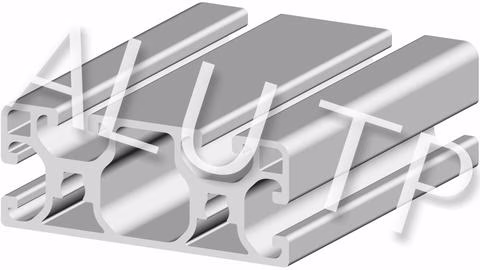

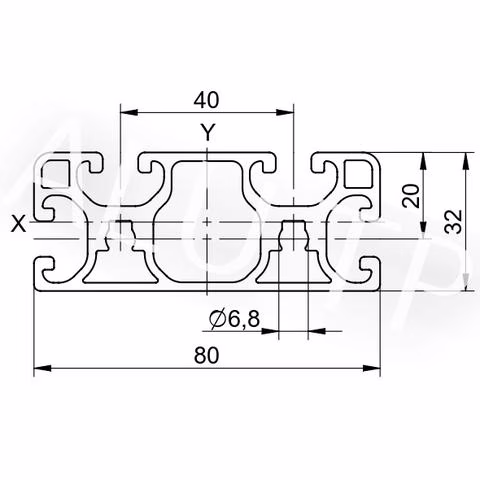

I8 8032L

PU	5 pcs.
Length	6060 mm
Mass	2.33 kg/m
Alternative name	Profil 8 80x32 leicht

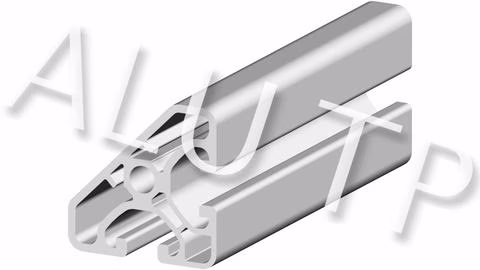

I8 4040E45

PU	8 pcs.
Length	6060 mm
Mass	1.23 kg/m
Alternative name	Profil 8 40x40-45° E

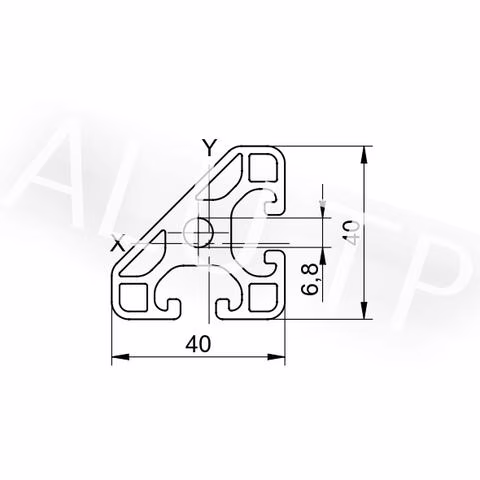

I8 4040L45

PU	8 pcs.
Length	6060 mm
Mass	1.50 kg/m
Alternative name	Profil 8 40x40-45° leicht

I8 404045

PU	8 pcs.
Length	6060 mm
Mass	1.98 kg/m
Alternative name	Profil 8 40x40-45°

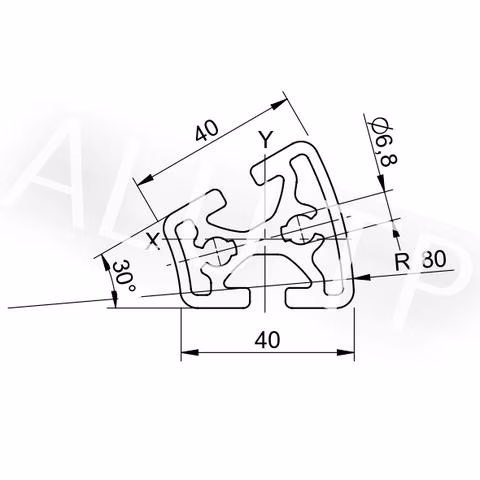

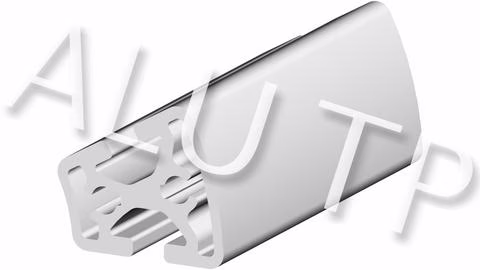

I8 40RR30

PU	6 pcs.
Length	6060 mm
Mass	1.68 kg/m
Alternative name	Profil 8 R40/80-30°

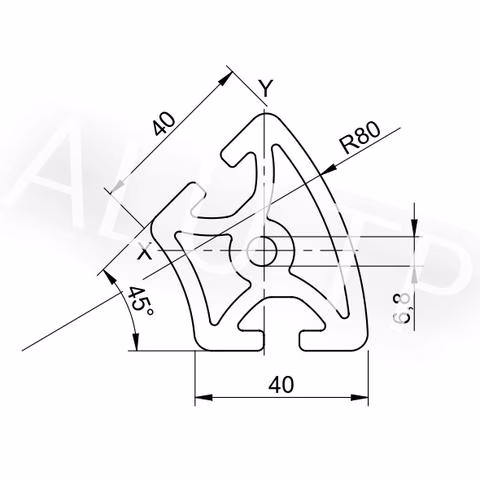

I8 40RR45

PU	6 pcs.
Length	6060 mm
Mass	2.77 kg/m
Alternative name	Profil 8 R40/80-45°

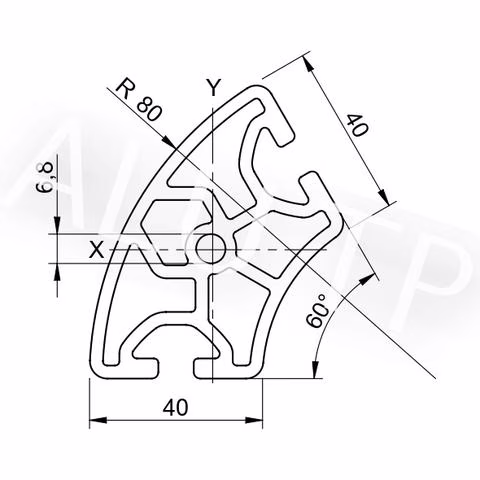

I8 40RR60

PU	6 pcs.
Length	6060 mm
Mass	2.86 kg/m
Alternative name	Profil 8 R40/80-60°

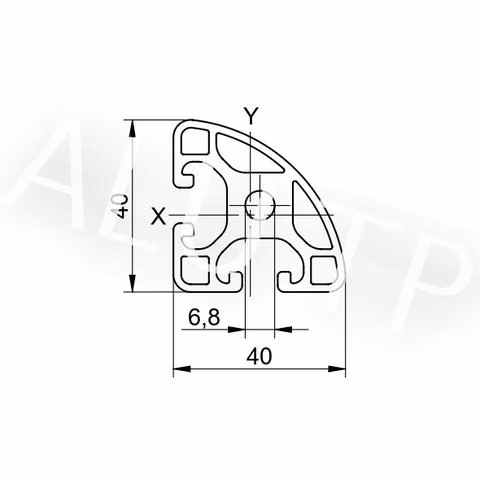

I8 40LR90

PU	8 pcs.
Length	6060 mm
Mass	1.52 kg/m
Alternative name	Profil 8 R40-90° leicht

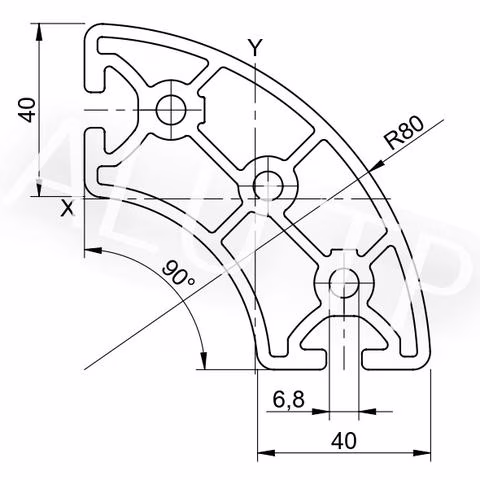

I8 40RR90

PU	4 pcs.
Length	6060 mm
Mass	3.94 kg/m
Alternative name	Profil 8 Profil 8 R40/80-90°

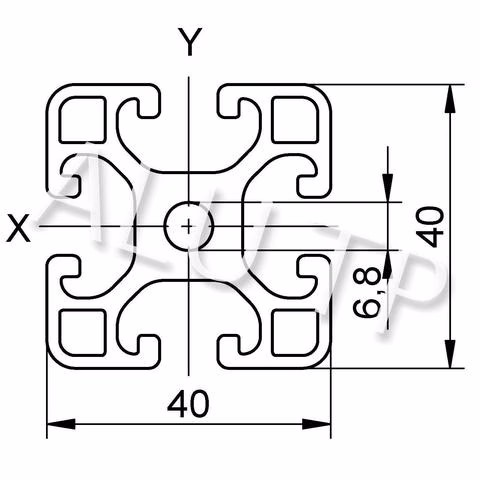

I8 4040L SE

PU	16 pcs.
Length	6060 mm
Mass	1.75 kg/m
Alternative name	Profil 8 40x40 leicht, schwarz eloxiert

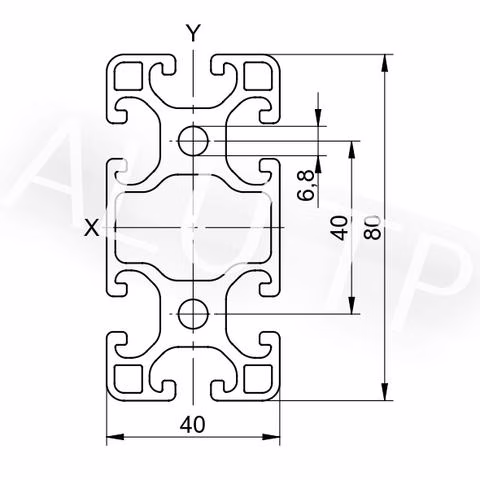

I8 4080L SE

PU	8 pcs.
Length	6060 mm
Mass	3.05 kg/m
Alternative name	Profil 8 80x40 leicht, schwarz eloxiert

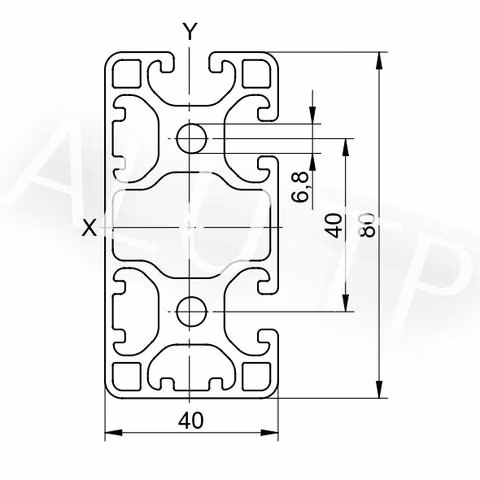

I8 4080L3NE

PU	8 pcs.
Length	6060 mm
Mass	3.16 kg/m
Alternative name	Profil 8 80x40 3N90 leicht

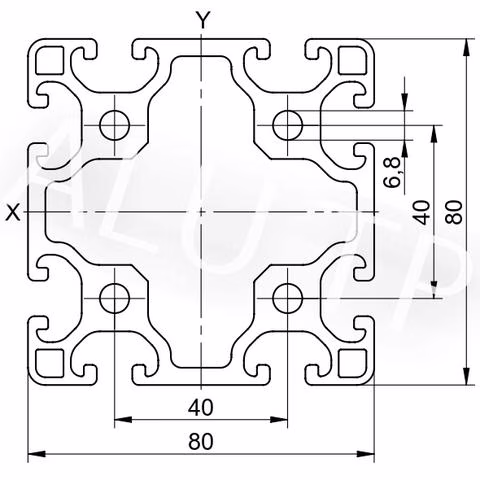

I8 8080L SE

PU	4 pcs.
Length	6060 mm
Mass	5.33 kg/m
Alternative name	Profil 8 80x80 leicht, schwarz eloxiert

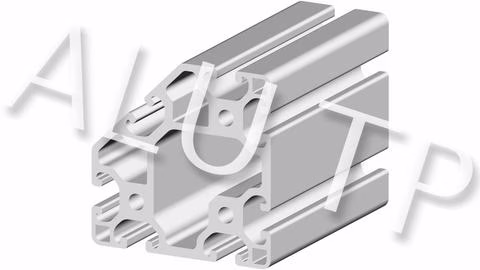

I8 8080L45

PU	4 pcs.
Length	6060 mm
Mass	5.08 kg/m
Alternative name	Profil 8 80x80-45 leicht

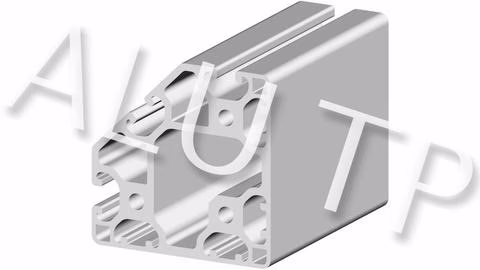

I8 8080L4NE45

PU	4 pcs.
Length	6060 mm
Mass	5.19 kg/m
Alternative name	Profil 8 80x80-45° 4N90

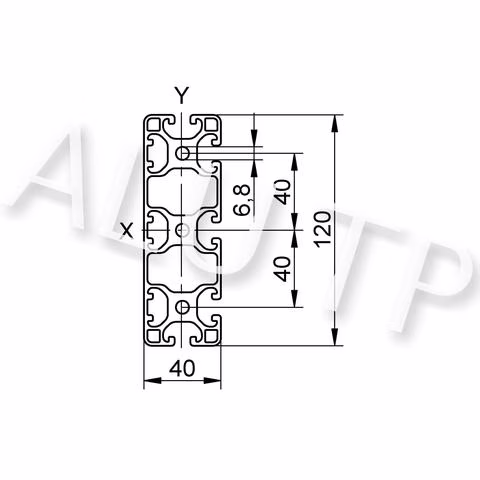

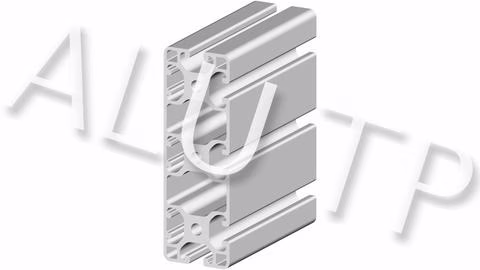

I8 40120L5N

PU	5 pcs.
Length	6060 mm
Mass	4.45 kg/m
Alternative name	Profil 8 120x40 3N leicht

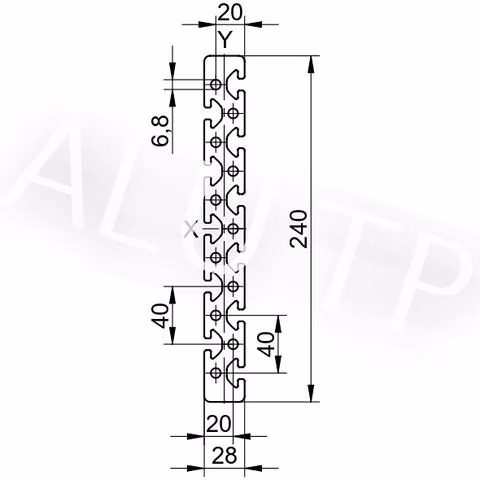

I8 28240

PU	2 pcs.
Length	6060 mm
Mass	12.29 kg/m
Alternative name	Profil 8 240x28

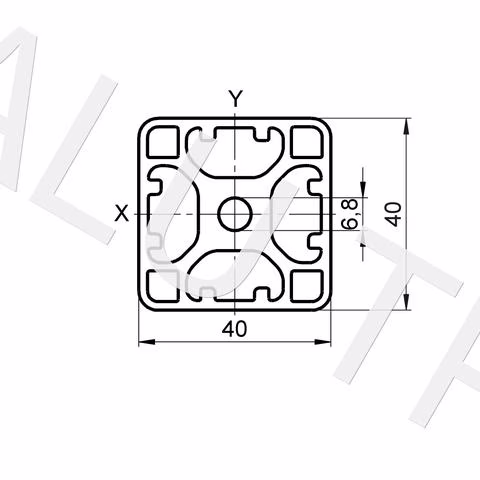

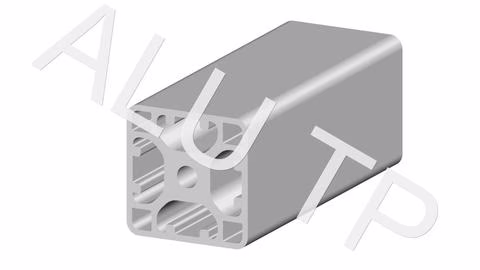

I8 4040L0N

PU	8 pcs.
Length	6060 mm
Mass	1.94 kg/m
Alternative name	Profil 8 40x40 4N leicht

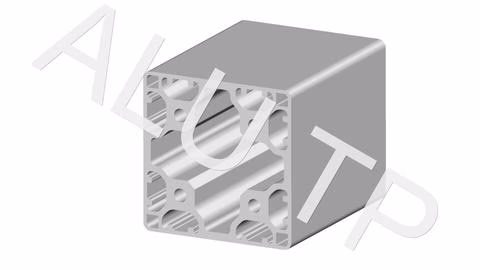

I8 8080L0N

PU	8 pcs.
Length	6060 mm
Mass	5.71 kg/m
Alternative name	Profil 8 80x80 8N leicht
