Automation profiles

Special profiles Series 2

All profiles are anodized and coordinated with each other in the series-specific grid dimensions, making them compatible. Within the series, the uniform grid dimension allows any combination of the automation profiles with one another. There is no industry in which ALU TP automation profiles cannot be used!

The aluminum alloy EN AW 6063 used is weather-resistant and resistant to many chemicals.

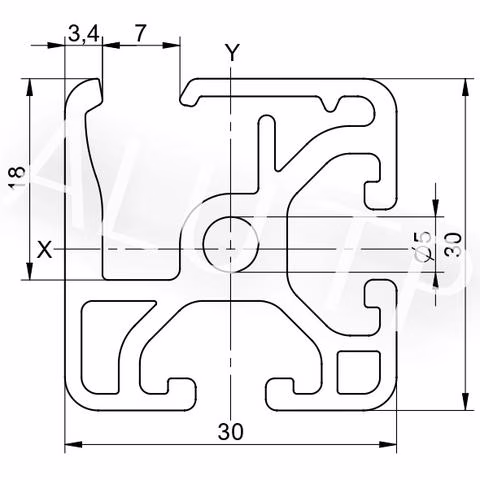

I6 3030EKP

PU	16 pcs.
Length	6060 mm
Mass	0.93 kg/m
Alternative name	Klemmprofil 6 30x30 E

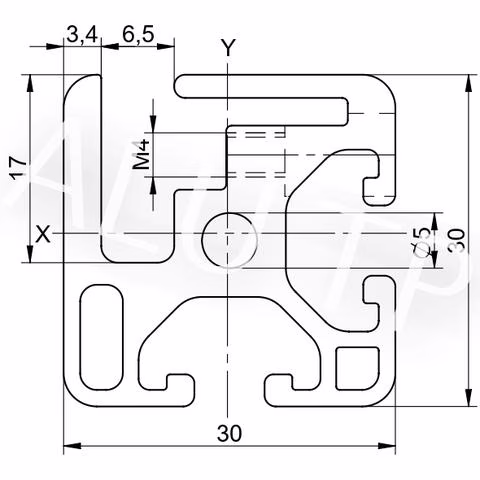

I6 3030KP

PU	16 pcs.
Length	6060 mm
Mass	1.09 kg/m
Alternative name	Klemmprofil 6 30x30

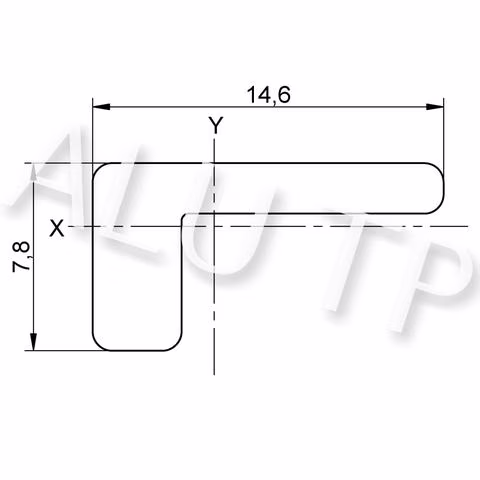

I6 KP30

PU	16 pcs.
Length	6060 mm
Mass	0.14 kg/m
Alternative name	Klemmprofil 6 Einlage

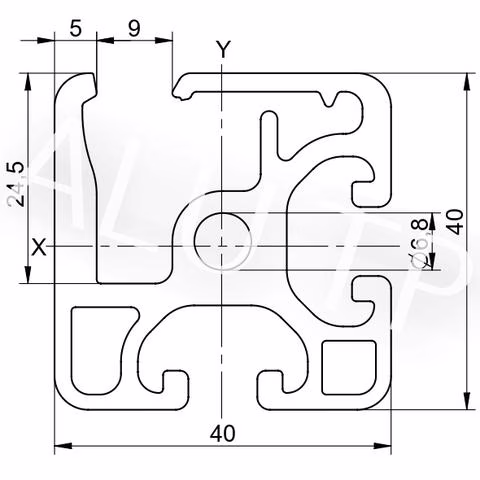

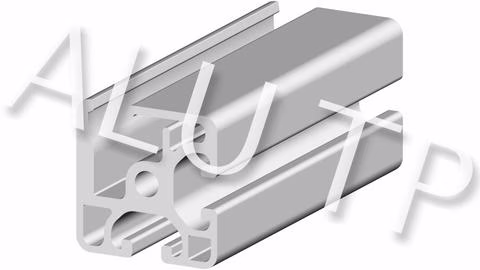

I8 4040EKP

PU	16 pcs.
Length	6060 mm
Mass	1.74 kg/m
Alternative name	Klemmprofil 8 40x40 E

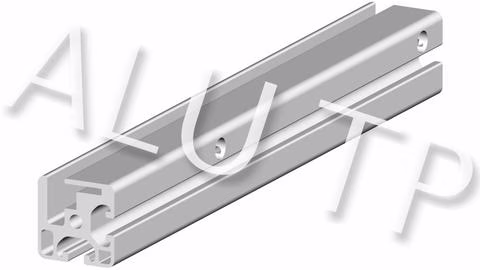

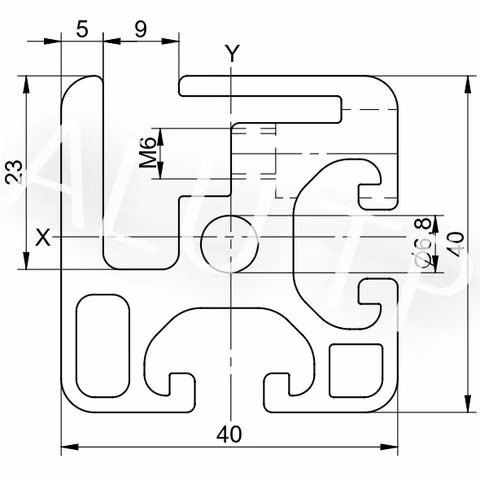

I8 4040KP

PU	16 pcs.
Length	6060 mm
Mass	2.01 kg/m
Alternative name	Klemmprofil 8 40x40

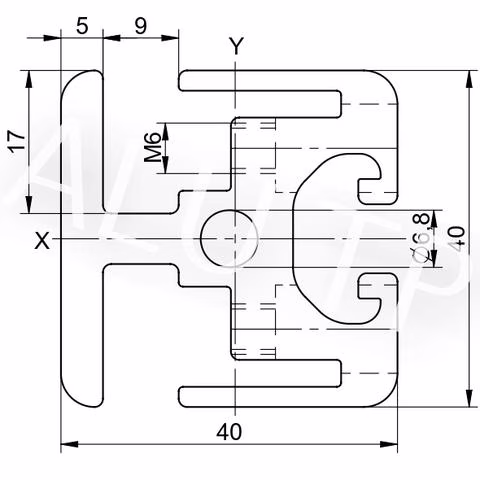

I8 4040KP 180

PU	8 pcs.
Length	6060 mm
Mass	2.23 kg/m
Alternative name	Klemmprofil 8 40x40 180°

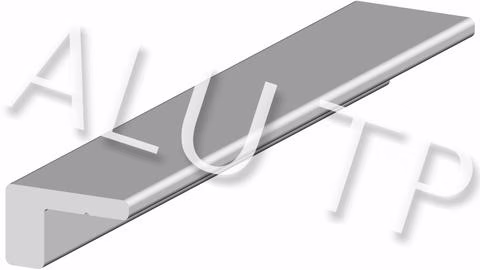

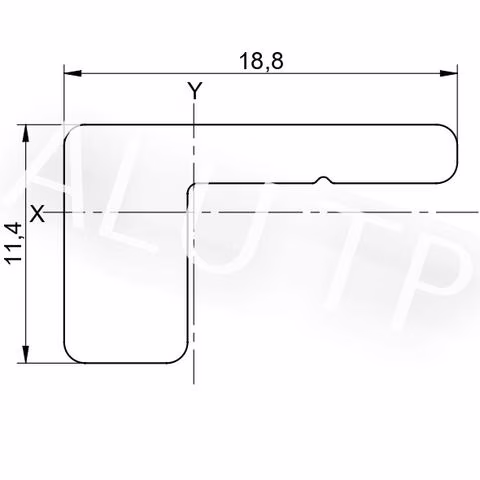

I8 KP40

PU	16 pcs.
Length	6060 mm
Mass	0.28 kg/m
Alternative name	Klemmprofil 8 Einlage

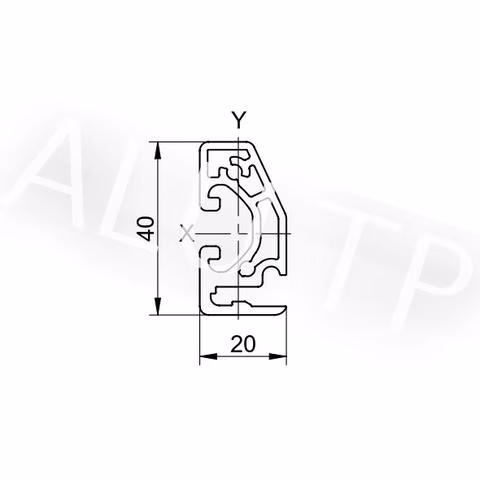

I8 Frame Profile 4020

PU	10 pcs.
Length	6060 mm
Mass	0.88 kg/m
Alternative name	Rahmenprofil 40x20

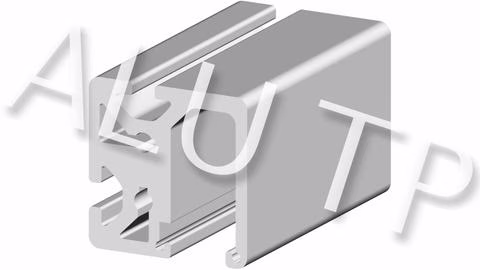

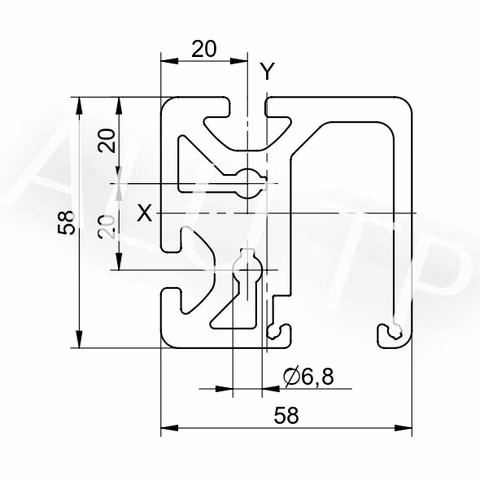

I8 LRP D14

PU	4 pcs.
Length	6060 mm
Mass	4.18 kg/m
Alternative name	Laufrollenprofil 8 D14

I8 CSP Schiene

PU	4 pcs.
Length	6060 mm
Mass	2.92 kg/m
Alternative name	Schienenprofil 8

I8 CSP Schlitten

PU	4 pcs.
Length	6060 mm
Mass	2.65 kg/m
Alternative name	Schlittenprofil 8

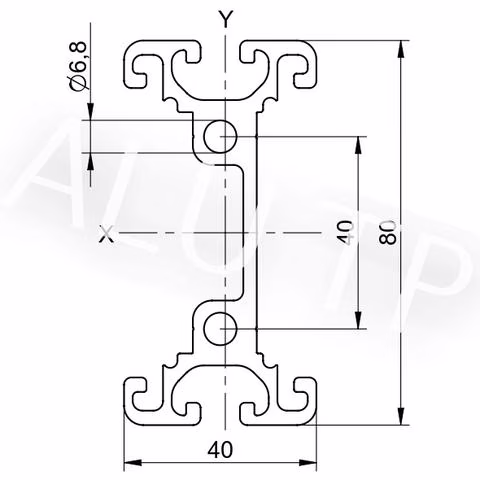

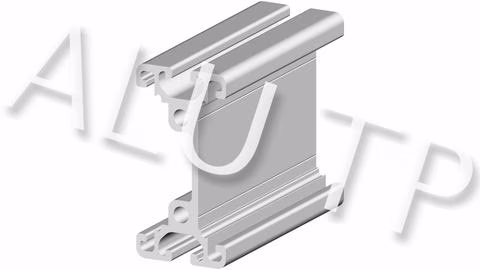

I8 4080SP2K

PU	8 pcs.
Length	6060 mm
Mass	2.08 kg/m
Alternative name	Ständerprofil 8 80x40 2xK60

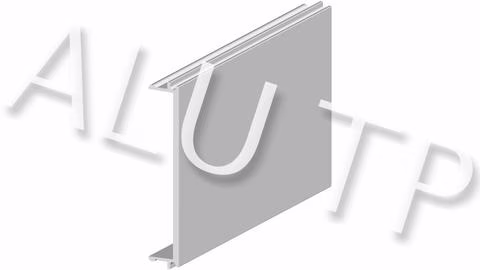

I8 Cover Profile AL60

PU	10 pcs.
Length	3060 mm
Mass	0.36 kg/m
Alternative name	Abdeckprofil 60

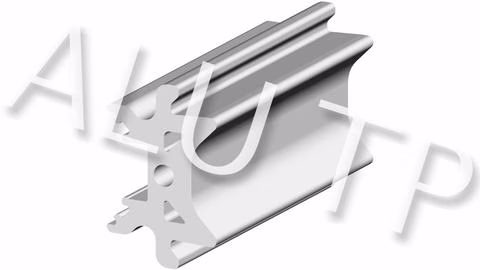

I8 Connection Profile 40

PU	6 pcs.
Length	6060 mm
Mass	2.40 kg/m
Alternative name	Verbindungsprofil 8 40

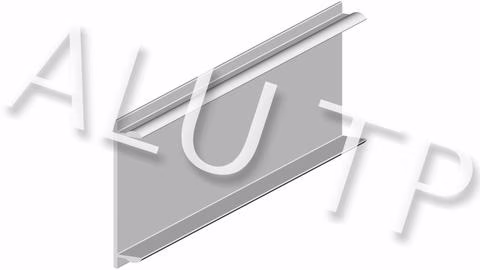

I8 Cover Profile AL32

PU	10 pcs.
Length	3060 mm
Mass	0.11 kg/m
Alternative name	Abdeckprofil 32

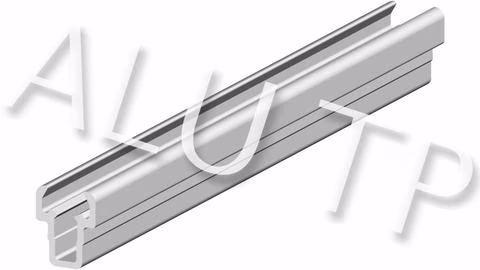

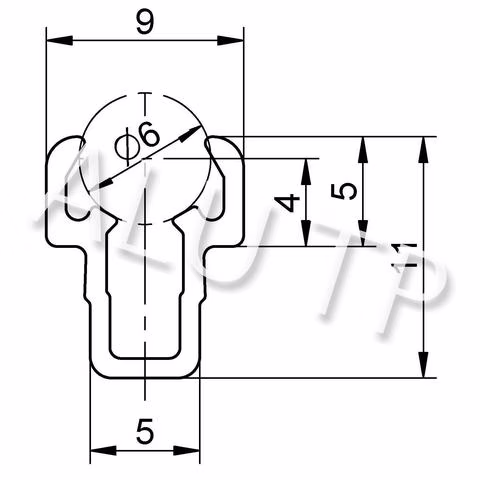

I5 Shaft Profile 6

PU	20 pcs.
Length	3060 mm
Mass	0.08 kg/m
Alternative name	Wellenklemmprofil 5 / 6

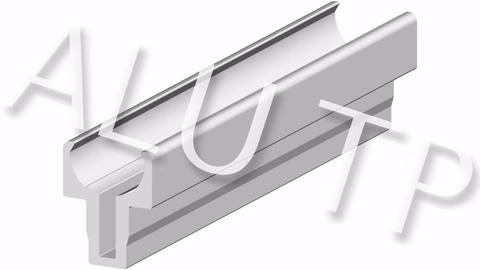

I8 Shaft Profile 14

PU	10 pcs.
Length	3060 mm
Mass	0.34 kg/m
Alternative name	Wellenklemmprofil 8 / 14

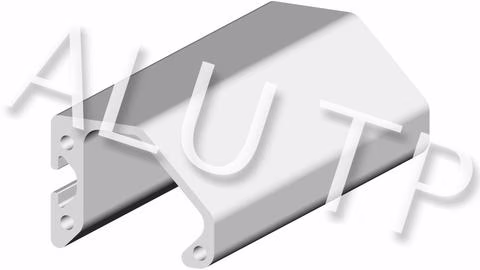

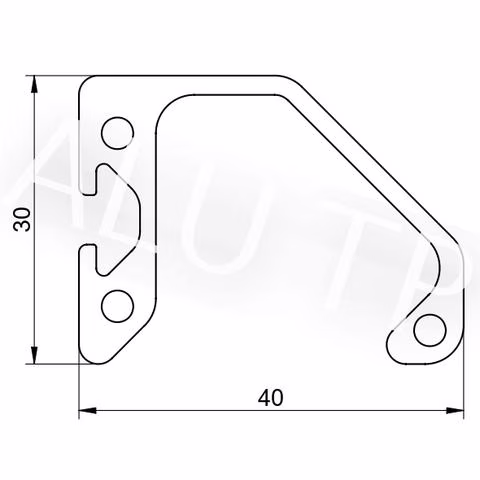

I5 Handle Profile

PU	10 pcs.
Length	3060 mm
Mass	0.77 kg/m
Alternative name	Griffleistenprofil

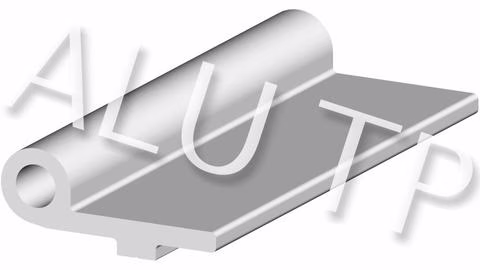

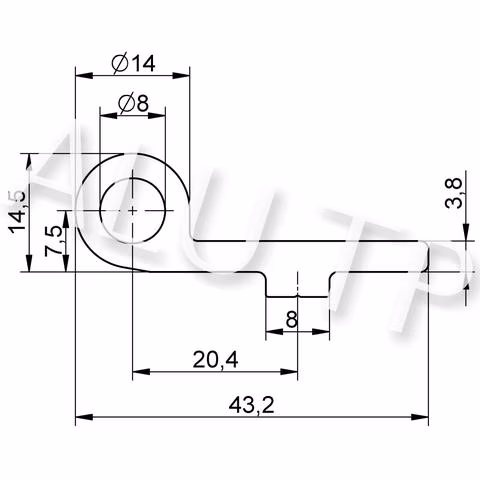

I8 Hinge Profile e

PU	10 pcs.
Length	3060 mm
Mass	0.68 kg/m
Alternative name	Scharnierlappenprofil e

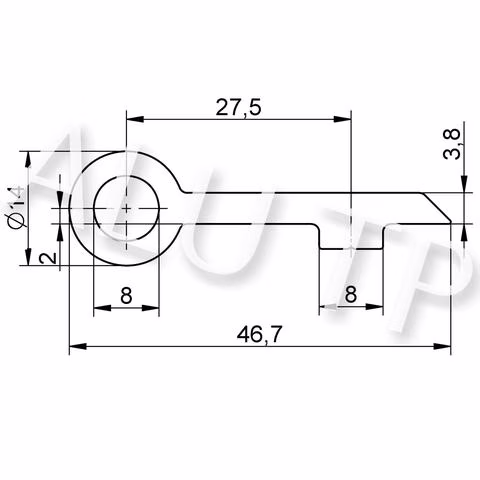

I8 Hinge Profile z

PU	10 pcs.
Length	3060 mm
Mass	0.66 kg/m
Alternative name	Scharnierlappenprofil z

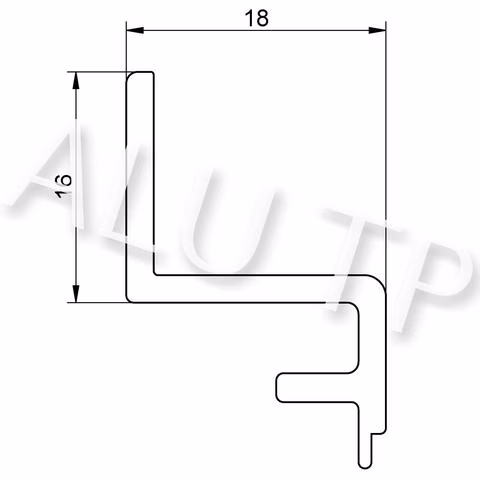

I8 Panel Clamping Profile

PU	12 pcs.
Length	3060 mm
Mass	0.25 kg/m
Alternative name	Scheibeneinfassleiste 8 AL

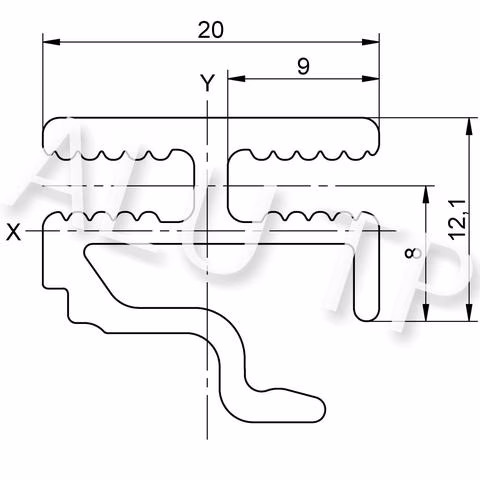

I8 WSL E

PU	8 pcs.
Length	3060 mm
Mass	0.36 kg/m
Alternative name	Winkelschraubleiste 8 E

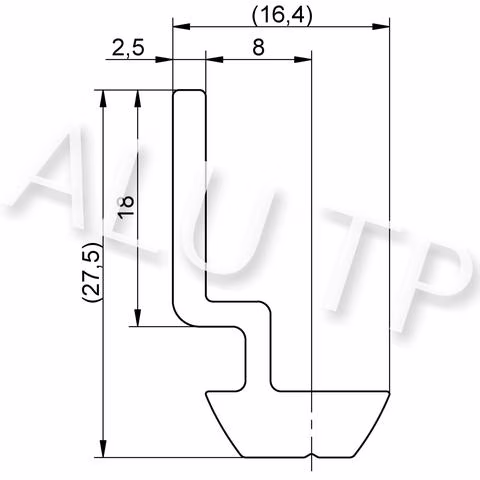

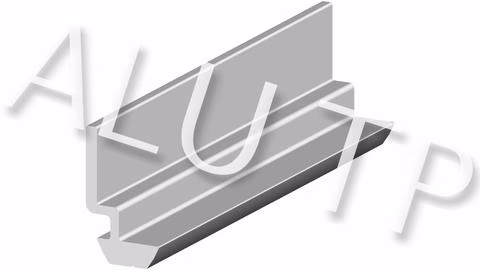

I8 WL

PU	16 pcs.
Length	2060 mm
Mass	0.32 kg/m
Alternative name	Winkelleiste 8

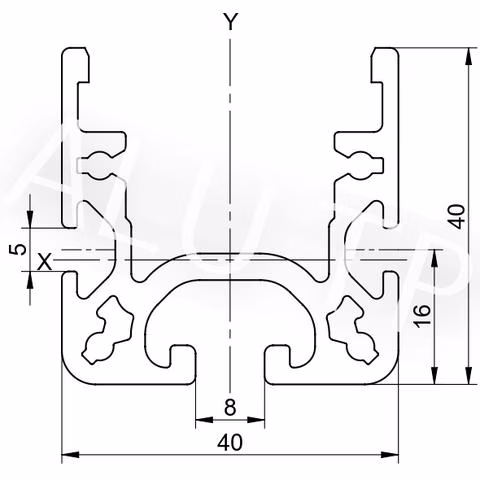

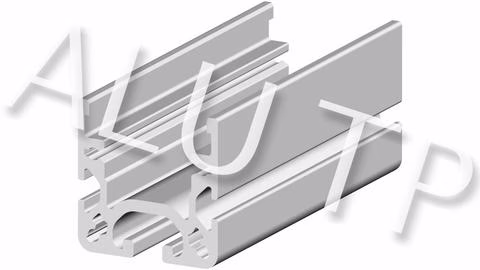

I8 RP01

PU	20 pcs.
Length	6060 mm
Mass	1.34 kg/m
Alternative name	Rollenschiene 8 40x40

I8 Cover Profile AL

PU	25 pcs.
Length	2000 mm
Mass	0.03 kg/m
Alternative name

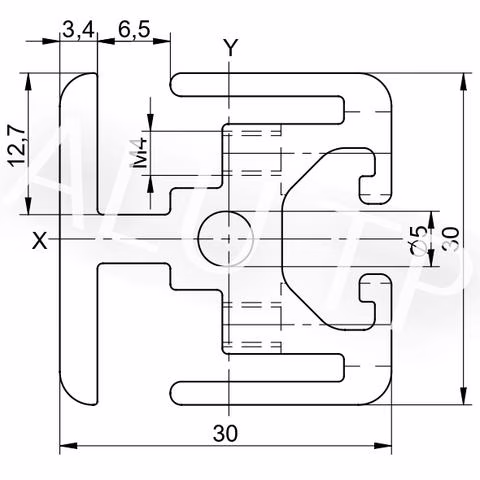

I6 3030KP 180

PU	8 pcs.
Length	6060 mm
Mass	1.21 kg/m
Alternative name	Klemmprofil 6 30x30 180°

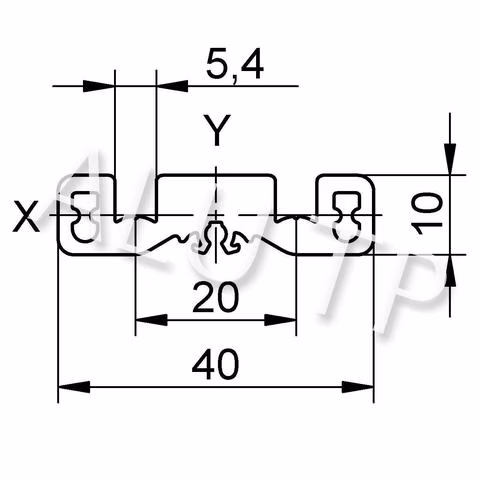

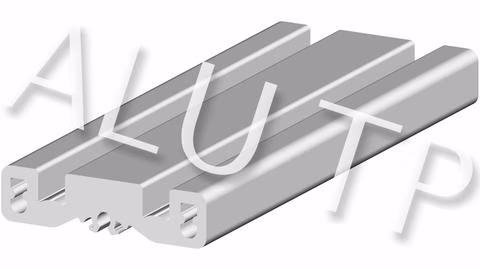

I8 SF1040

PU	10 pcs.
Length	3060 mm
Mass	0.74 kg/m
Alternative name	Führungsprofil 8 40x10

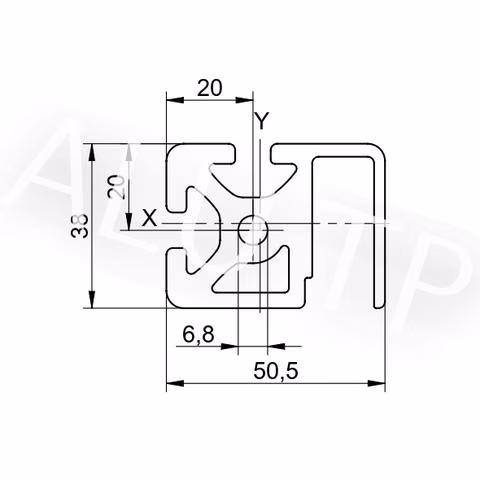

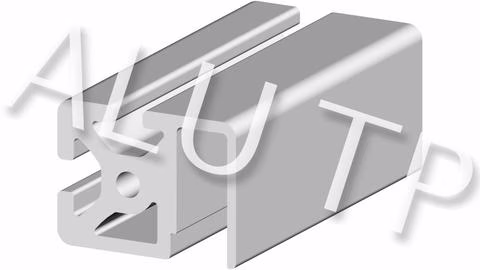

I8 LRP D10

PU	4 pcs.
Length	6060 mm
Mass	2.48 kg/m
Alternative name	Laufrollenprofil 8 D10

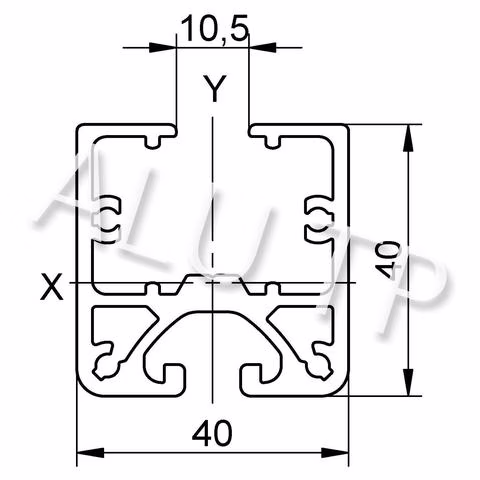

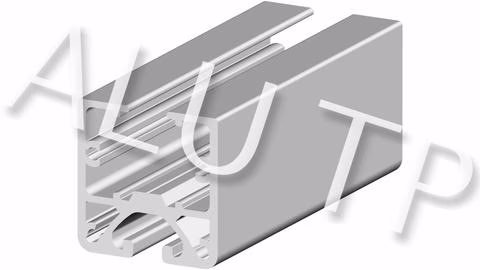

I8 4040LBP

PU	8 pcs.
Length	6060 mm
Mass	1.42 kg/m
Alternative name	Laufbahnprofil 8 40x40

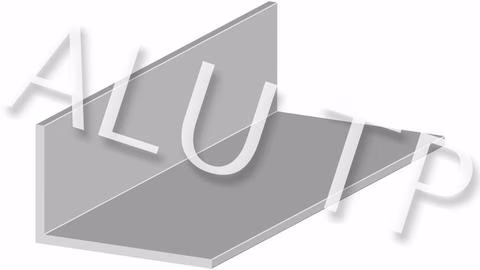

W 40x25x2

PU	20 pcs.
Length	3060 mm
Mass	0.34 kg/m
Alternative name	Profil W40x25x2 E

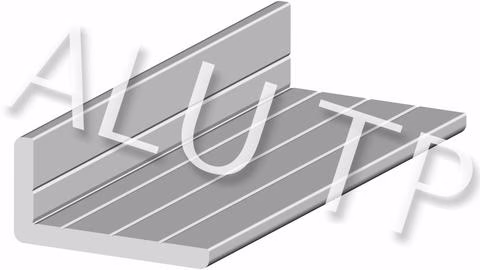

W 40x20x4

PU	20 pcs.
Length	2060 mm
Mass	0.59 kg/m
Alternative name	Profil W40x20x4 E

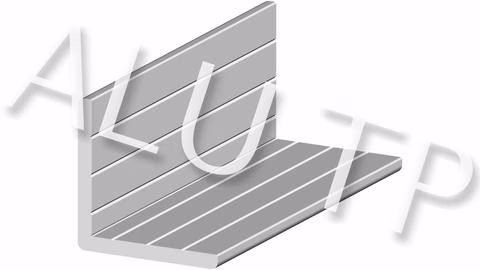

W 40x40x4

PU	20 pcs.
Length	2060 mm
Mass	0.81 kg/m
Alternative name	Profil W40x40x4 E

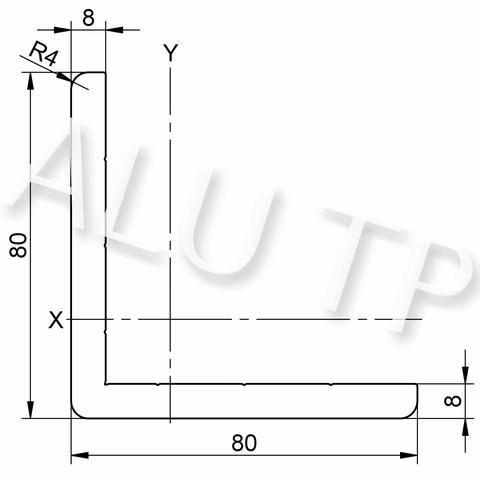

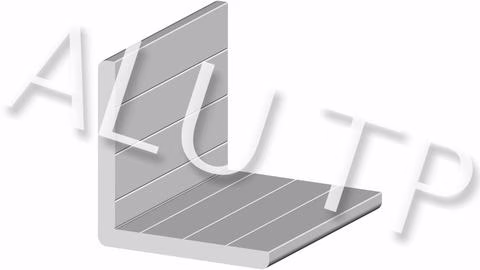

W 80x80x8

PU	10 pcs.
Length	2060 mm
Mass	3.25 kg/m
Alternative name	Profil W80x80x8 E

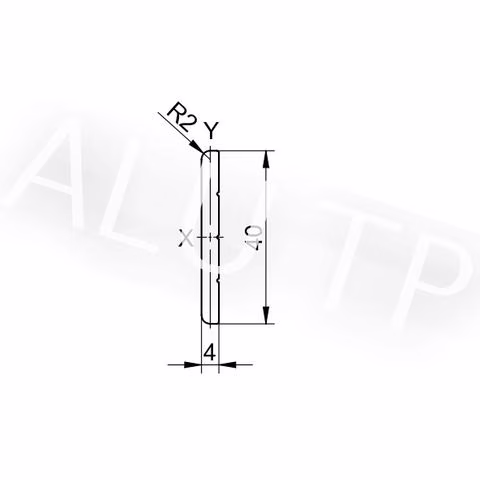

P 40x4

PU	20 pcs.
Length	2060 mm
Mass	0.42 kg/m
Alternative name	Profil M 40x4E

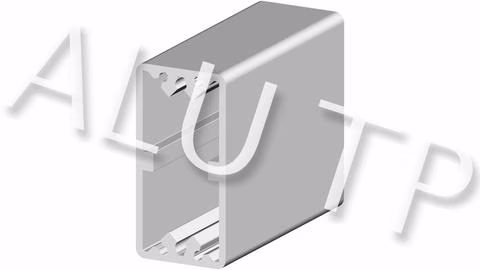

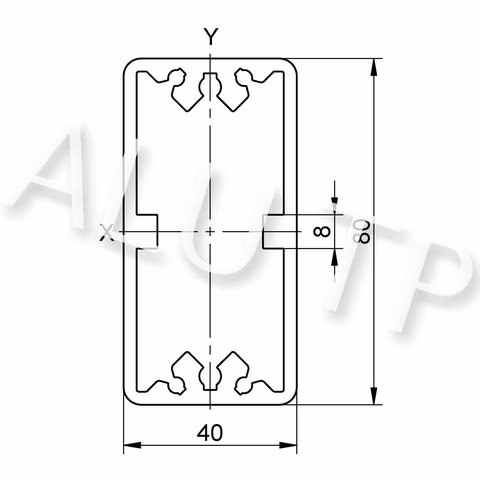

I8 4080T

PU	4 pcs.
Length	6060 mm
Mass	2.58 kg/m
Alternative name	Teleskop 80x40

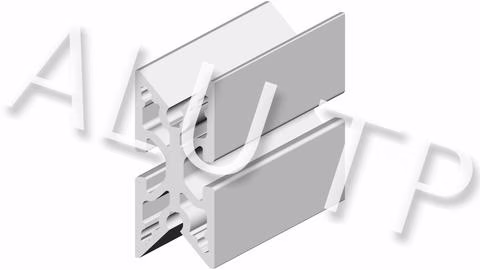

I8 4080TI

PU	4 pcs.
Length	6060 mm
Mass	2.61 kg/m
Alternative name	Teleskop Innen 80x40

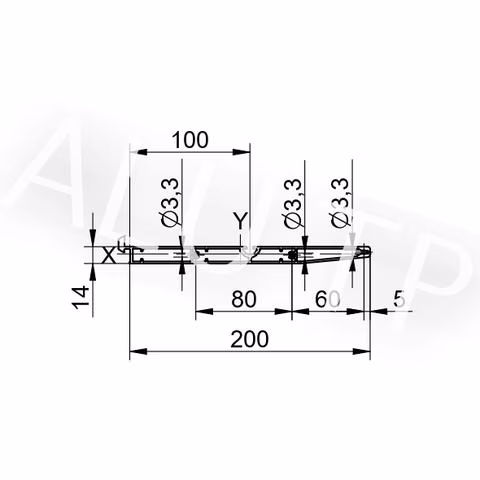

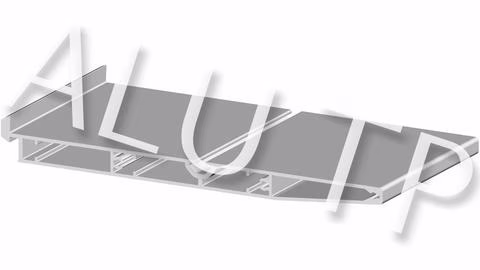

I8 RB200

PU	2 pcs.
Length	6060 mm
Mass	2.52 kg/m
Alternative name	Regalboden 8 200

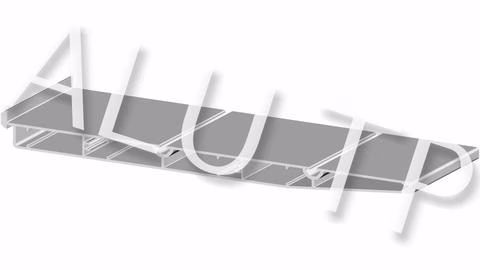

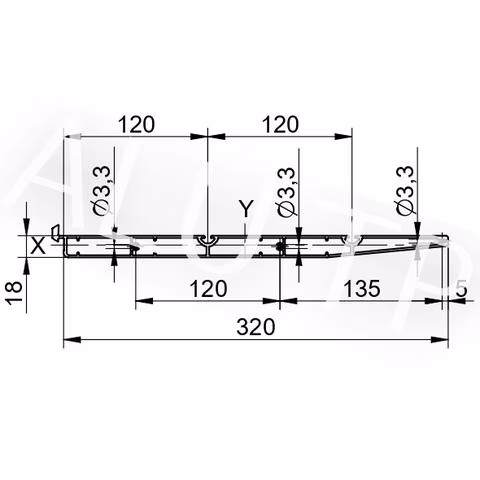

I8 RB320

PU	2 pcs.
Length	6060 mm
Mass	4.02 kg/m
Alternative name	Regalboden 8 320

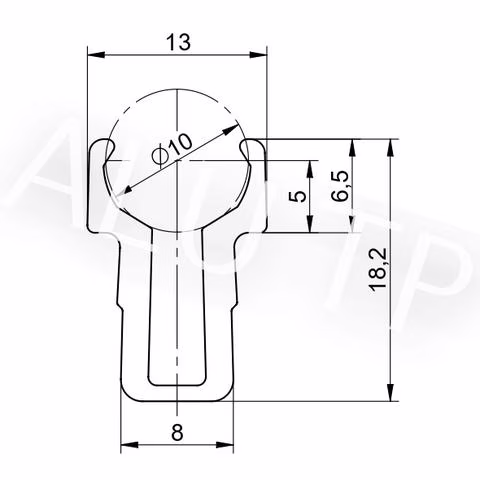

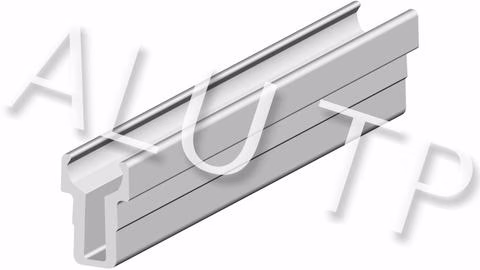

I8 Shaft Profile 10

PU	10 pcs.
Length	3060 mm
Mass	0.21 kg/m
Alternative name	Wellenklemmprofil 8 / 10

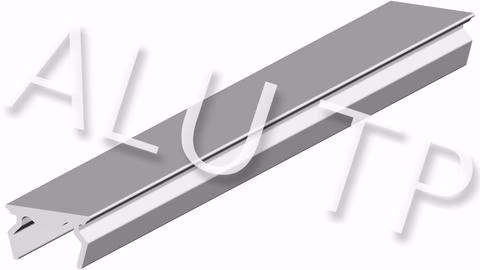

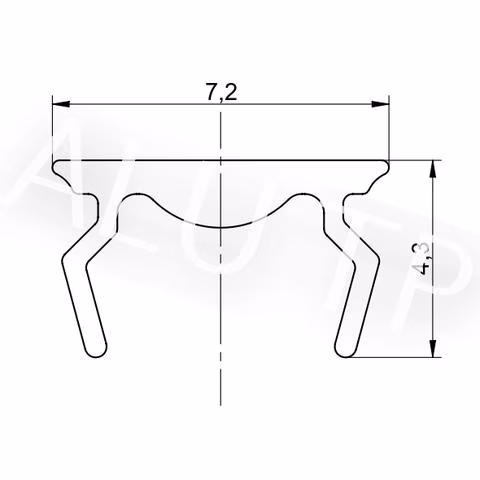

I6 Cover Profile AI

PU	25 pcs.
Length	2000 mm
Mass	0.03 kg/m
Alternative name

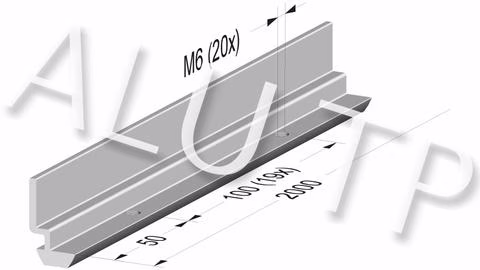

I8 WL M6

PU	10 pcs.
Length	2000 mm
Mass	0.32 kg/m
Alternative name	Winkel 8 AL M6

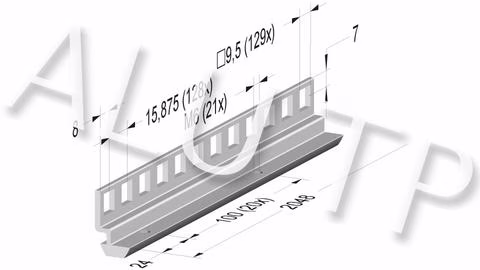

I8 WL M6 KM

PU	10 pcs.
Length	2048 mm
Mass	0.32 kg/m
Alternative name	Winkel 8 AL KM

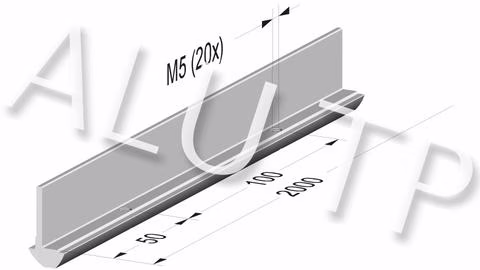

I8 WL K M5

PU	10 pcs.
Length	2000 mm
Mass	0.26 kg/m
Alternative name	Winkel 8 AL 16 M5

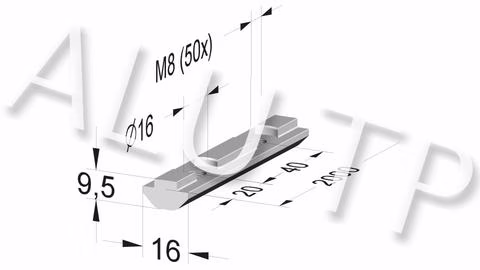

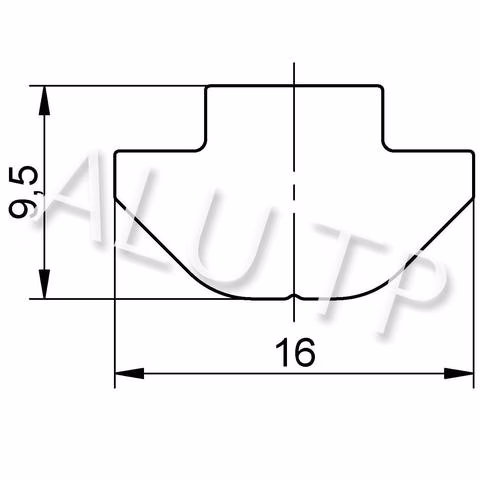

I8 NP M8 40

PU	10 pcs.
Length	2000 mm
Mass	0.29 kg/m
Alternative name	Nutenprofil 8 M8-40

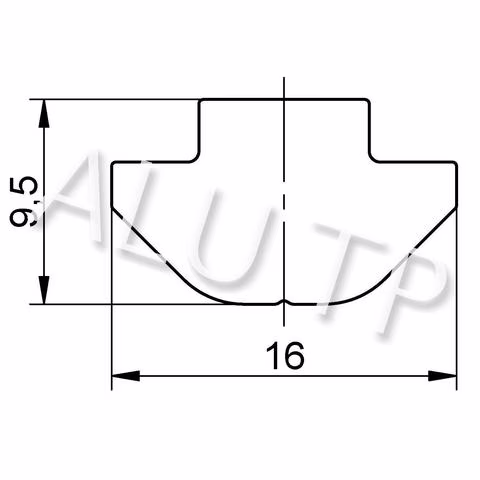

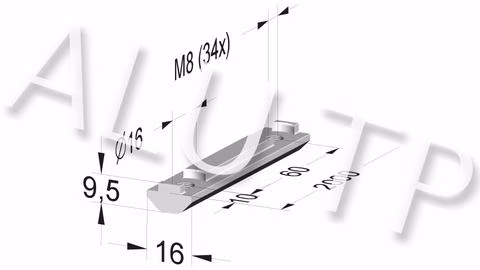

I8 NP M8 60

PU	10 pcs.
Length	2000 mm
Mass	0.29 kg/m
Alternative name	Nutenprofil 8 M8-60

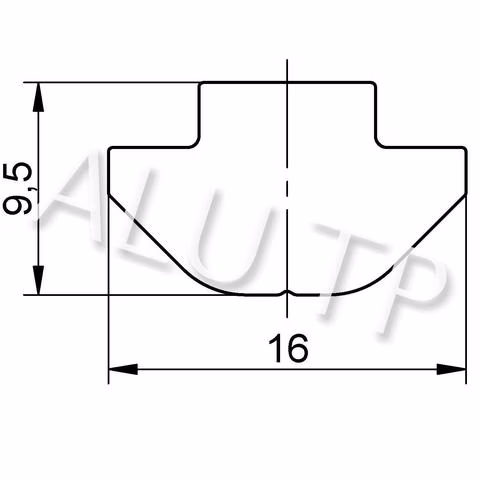

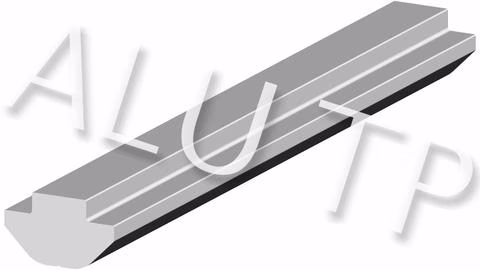

I8 NP

PU	16 pcs.
Length	3060 mm
Mass	0.29 kg/m
Alternative name	Nutenprofil

W 80x40x8

PU	10 pcs.
Length	3060 mm
Mass	2.39 kg/m
Alternative name

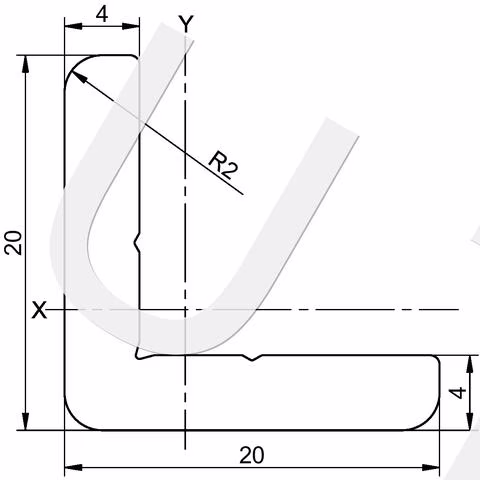

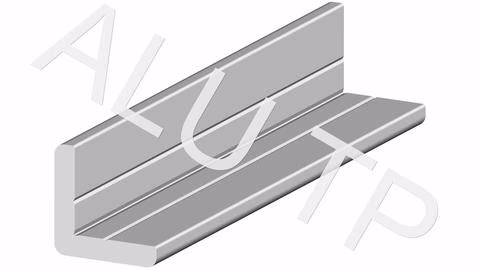

W 20x20x4

PU	20 pcs.
Length	2060 mm
Mass	0.38 kg/m
Alternative name	Profil W20x20x4 E
