Series 3

All profiles are anodized and coordinated with each other in the series-specific grid dimensions, making them compatible. Within the series, the uniform grid dimension allows any combination of the automation profiles with one another. There is no industry in which ALU TP automation profiles cannot be used!

The aluminum alloy EN AW 6063 used is weather-resistant and resistant to many chemicals.

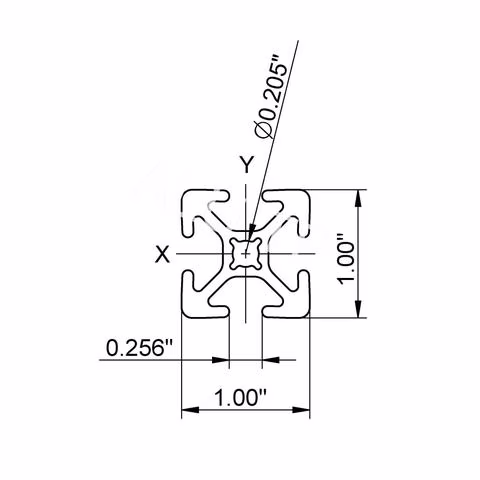

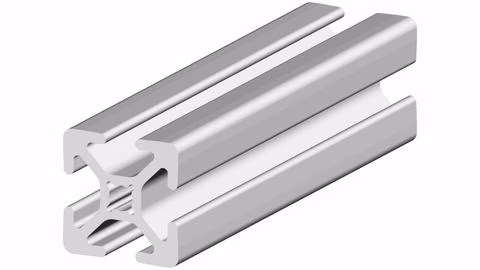

F6 1010S

PU	210 pcs.
Length	6198 mm
Mass	0.76 kg/m
Alternative name	1.00" x 1.00" smooth t-slot extrusion

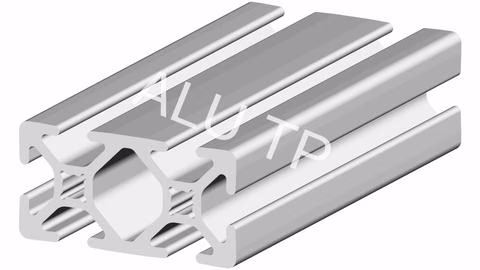

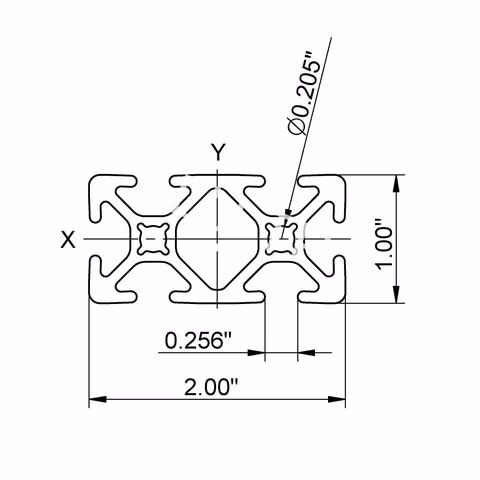

F6 1020S

PU	120 pcs.
Length	6198 mm
Mass	1.36 kg/m
Alternative name	1.00" x 2.00" smooth t-slot extrusion

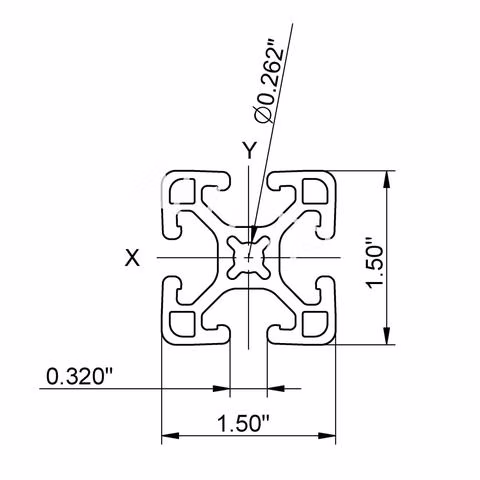

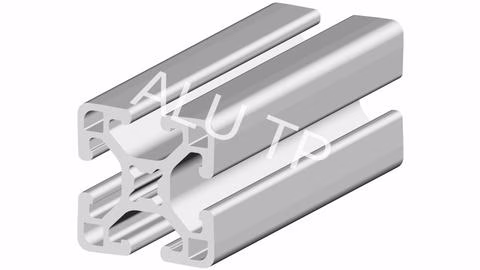

F8 1515LS

PU	60 pcs.
Length	6198 mm
Mass	1.53 kg/m
Alternative name	1.50" x 1.50" smooth t-slot extrusion light

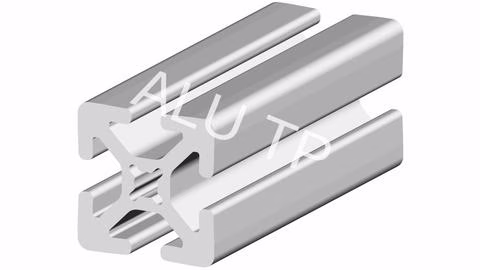

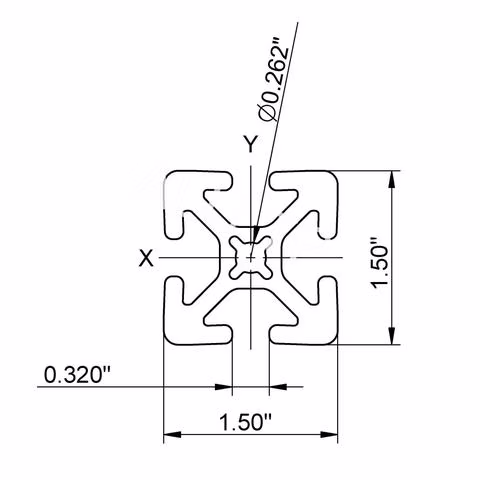

F8 1515S

PU	80 pcs.
Length	6198 mm
Mass	1.98 kg/m
Alternative name	1.50" x 1.50" smooth t-slot extrusion

F8 1530LS

PU	110 pcs.
Length	6198 mm
Mass	2.93 kg/m
Alternative name	1.50" x 3.50" smooth t-slot extrusion light

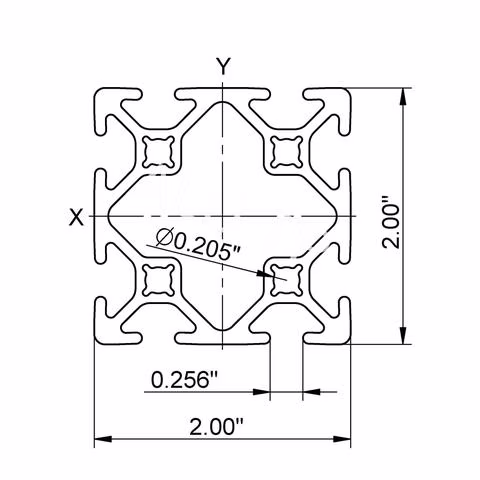

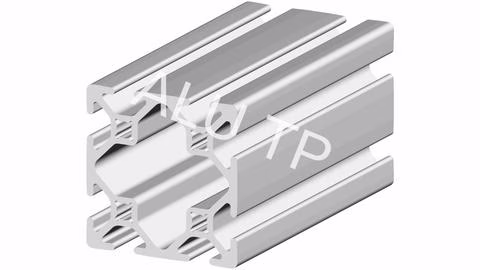

F6 2020S

PU	80 pcs.
Length	6198 mm
Mass	2.09 kg/m
Alternative name	2.00" x 2.00" smooth t-slot extrusion

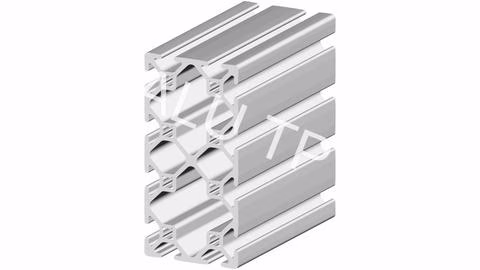

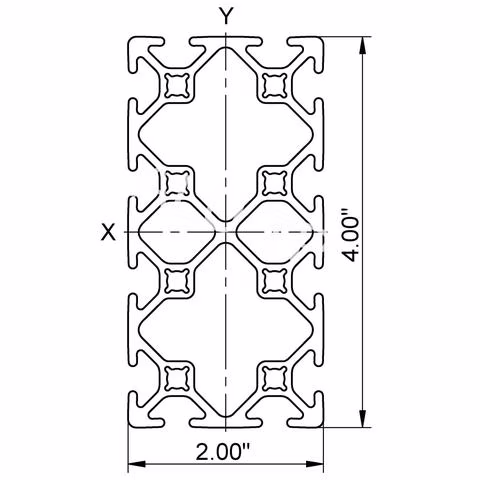

F6 2040S

PU	40 pcs.
Length	6198 mm
Mass	3.88 kg/m
Alternative name

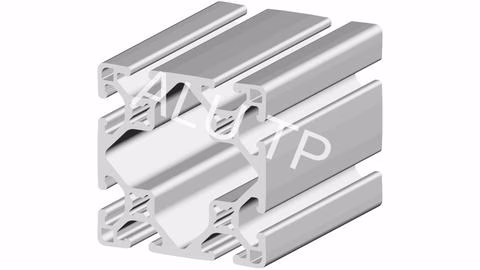

F8 3030LS

PU	36 pcs.
Length	6198 mm
Mass	4.64 kg/m
Alternative name	3.00" x 3.00" smooth t-slot extrusion

F8 3030S

PU	30 pcs.
Length	6198 mm
Mass	5.42 kg/m
Alternative name	3.00" x 3.00" smooth t-slot extrusion

F6 1010S SE

PU	210 pcs.
Length	6198 mm
Mass	0.76 kg/m
Alternative name	1.00" x 1.00" smooth t-slot extrusion black anodized

F8 1515LS SE

PU	60 pcs.
Length	6198 mm
Mass	1.53 kg/m
Alternative name	1.50" x 1.50" smooth t-slot extrusion light black anodized
